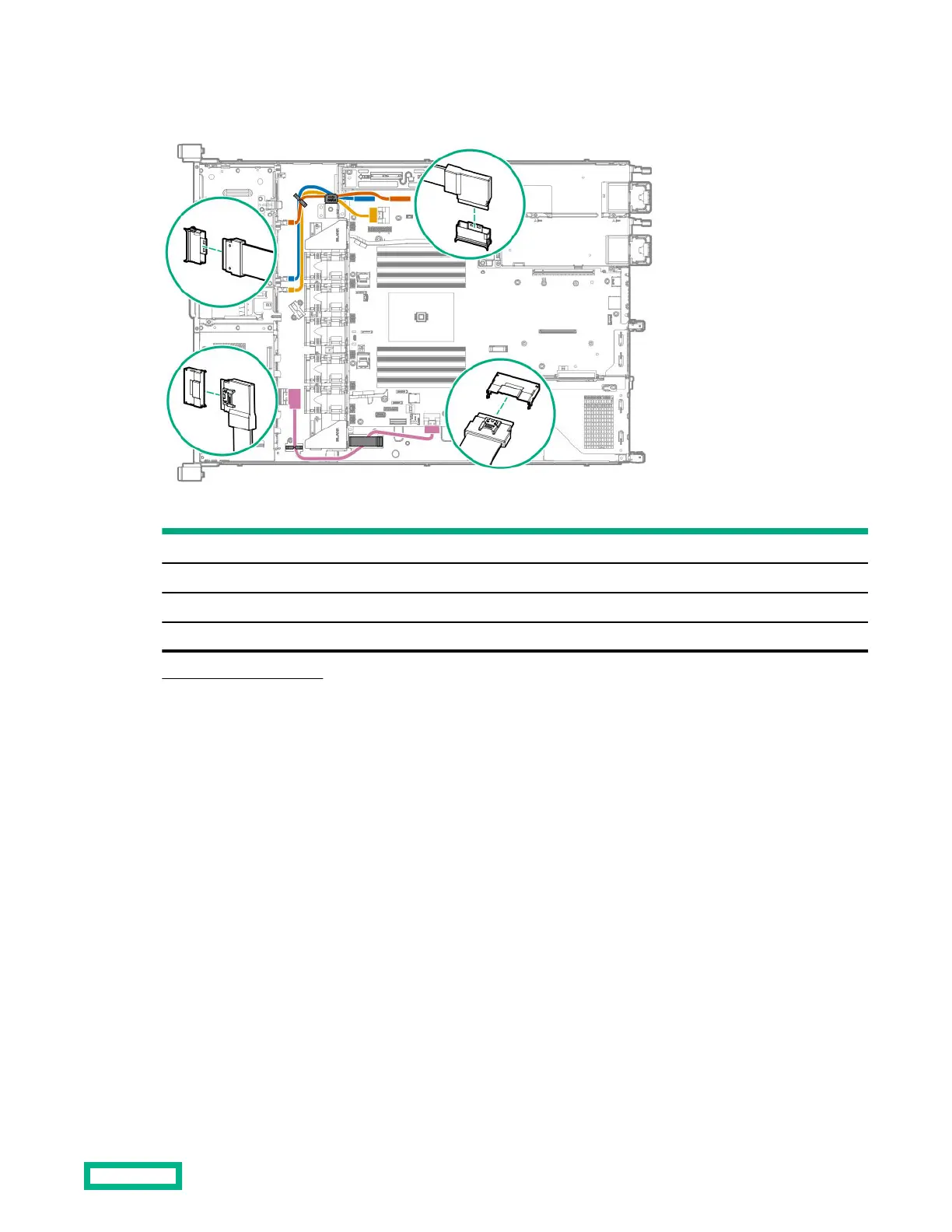

Cable routing: 8SFF NVMe drive model
• 8NVMe drive connected to system board
Item Description
Orange Slimline cable to NVMe port 1A on system board
Blue Slimline cable to NVMe port 2A on system board
Gold Slimline cable to NVMe port 3A on system board
Pink Slimline cable to NVMe port 4A on system board
• 8NVMe drive power cable
Cable routing: 2SFF SAS/SATA drive cage
• SATA cable to system board
