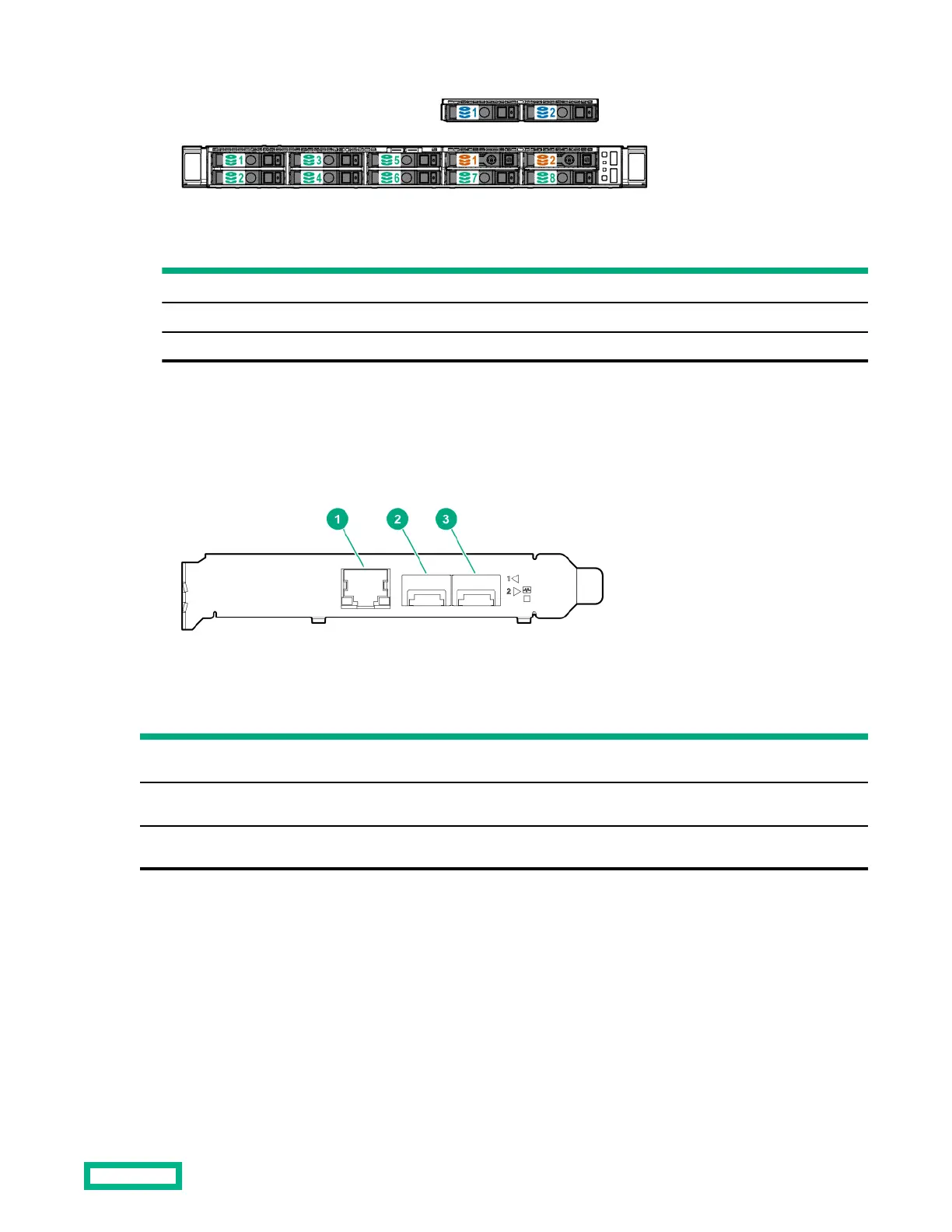

Drive numbering colors Description
Green 8SFF NVMe drives
Blue 2SFF NVMe drives (optional)
Orange 2SFF SAS/SATA drives (optional)
DSC-25 2-port SFP28 card ports and LEDs
Ports
Table 1: Ports
Item
Port Description
1 Management port 1GbE RJ45
2 Network interface port 10/25G SFP+ based
3 Network interface port 10/25G SFP+ based
LEDs
The HPE for Pensando DSP DSC-252p SFP28 card is a dual-port, single-slot, half-height, half-length (HHHL) SFP28
network adapter. It has LEDs for Link (L) and Activity (A) for each port. A half-height bracket is shown in the following
illustration with SFP28 ports and LEDs.
Component identification
129
