• Remove cables that are no longer being used. Retaining them inside the server can restrict airflow. If you intend to use
the removed cables later, label and store them for future use.

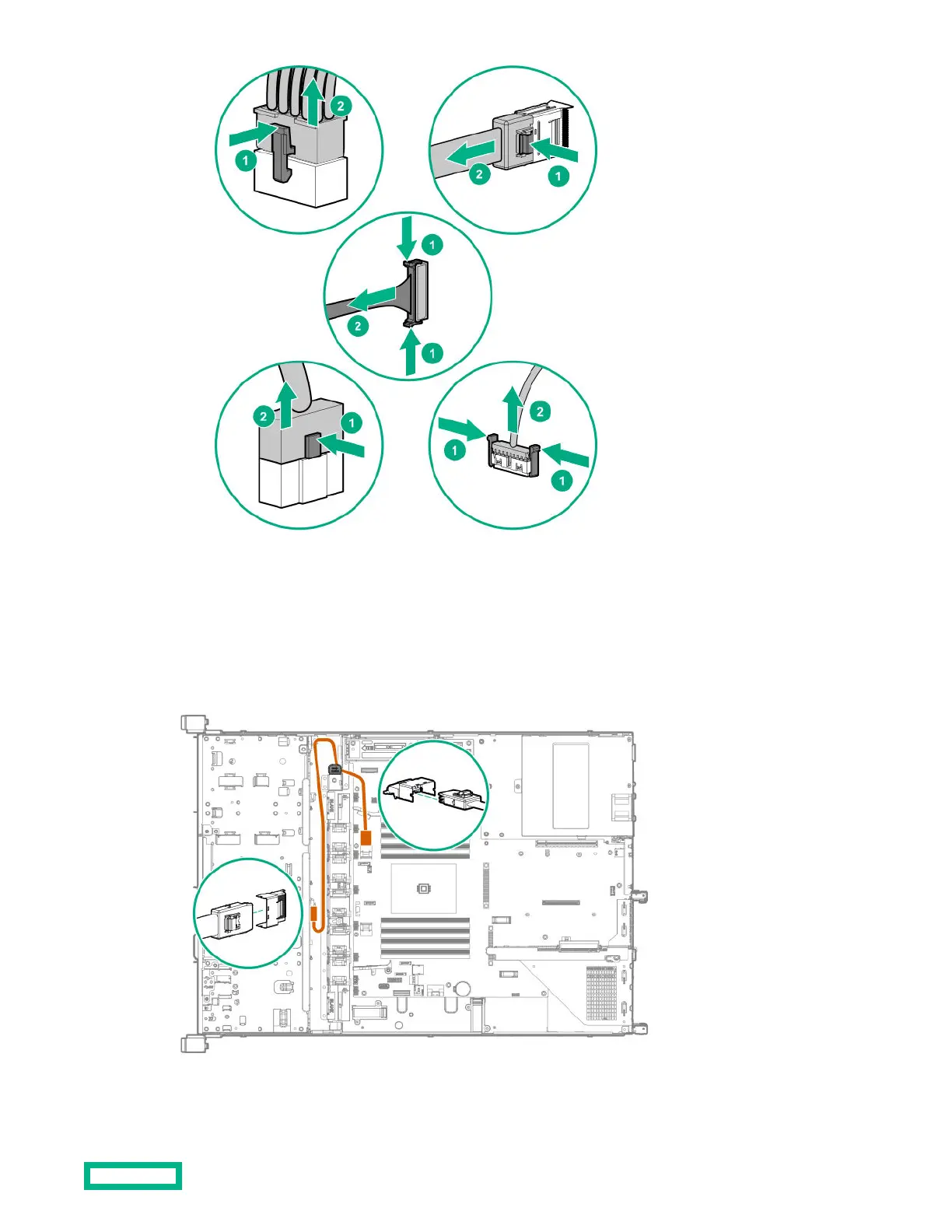

Cable routing: 4LFF drive model
• 4LFF drive connected to system board
• 4LFF drive connected to Embedded HPE Smart Array S100i SR Gen10 Controller
Cabling
134
