Chapter 1

Overview—Server Upgrade

Processor Extender Board

Step 5. Pull out on the extraction levers to unplug the processor extender board from the socket located on

the midplane riser board.

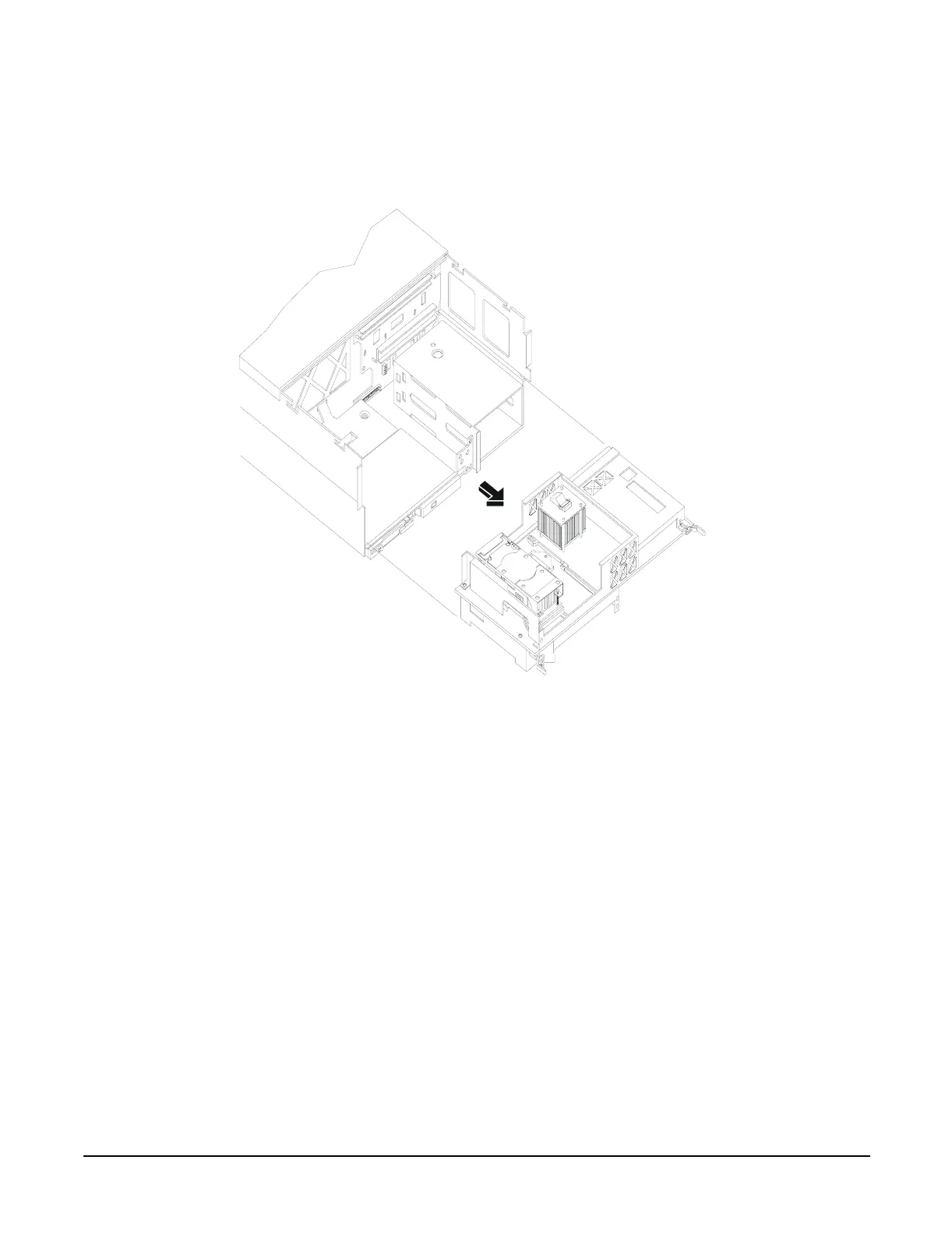

Figure 1-7 Processor Extender Board
