Chapter 5
U320 SCSI Enablement and Conversion Procedures
Introduction
63
Step 8. Remove the memory extender board. See “Removing a Memory Extender Board” on page 23.
Step 9. Remove the processor extender board. See “Removing the Processor Extender Board” on page 21.
Removing the SCSI Duplex Board
The SCSI Duplex board is only installed if the server is configured for duplex operation. The duplex
board is secured to the disk drive cage by a bracket and connected to the SCSI backplane board. To
remove the SCSI duplex board, perform the following steps:
Step 1. Disconnect the SCSI cable B to the SCSI backplane board. See Figure 5-1, “SCSI Cable B
Connection to the SCSI Backplane.”

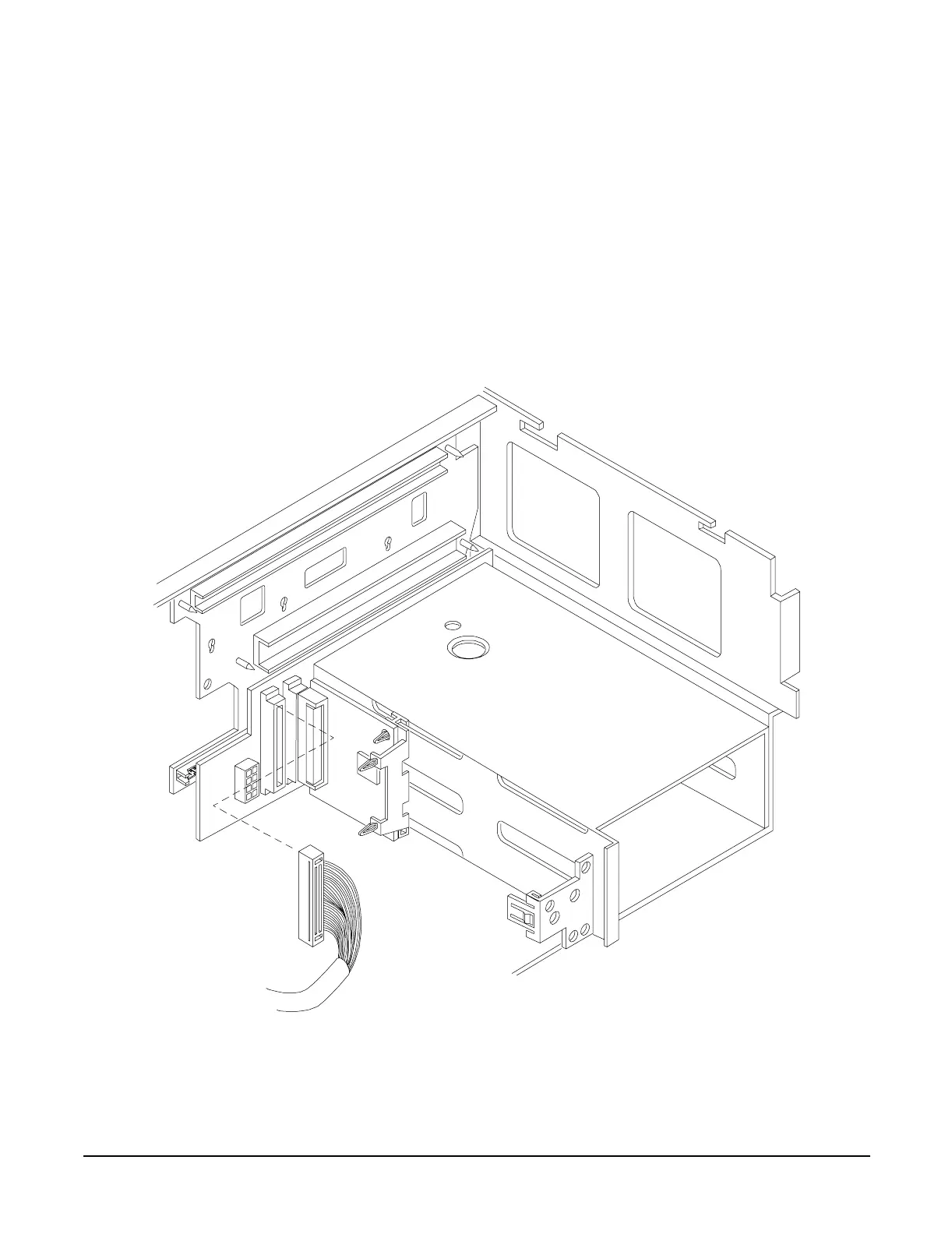

Figure 5-1 SCSI Cable B Connection to the SCSI Backplane
Step 2. Remove the duplex board. Pull the SCSI duplex board forward to disconnect the backplane
connector and release it from the disk drive cage. See Figure 5-2, “Replacing the SCSI Duplex
Board.”
