Chapter 5
U320 SCSI Enablement and Conversion Procedures
Introduction
65
NOTE The SCSI jumper cable bridges the two SCSI connectors on the SCSI backplane
when the server is configured for simplex operation. The SCSI jumper cable is not
installed in duplex configurations.

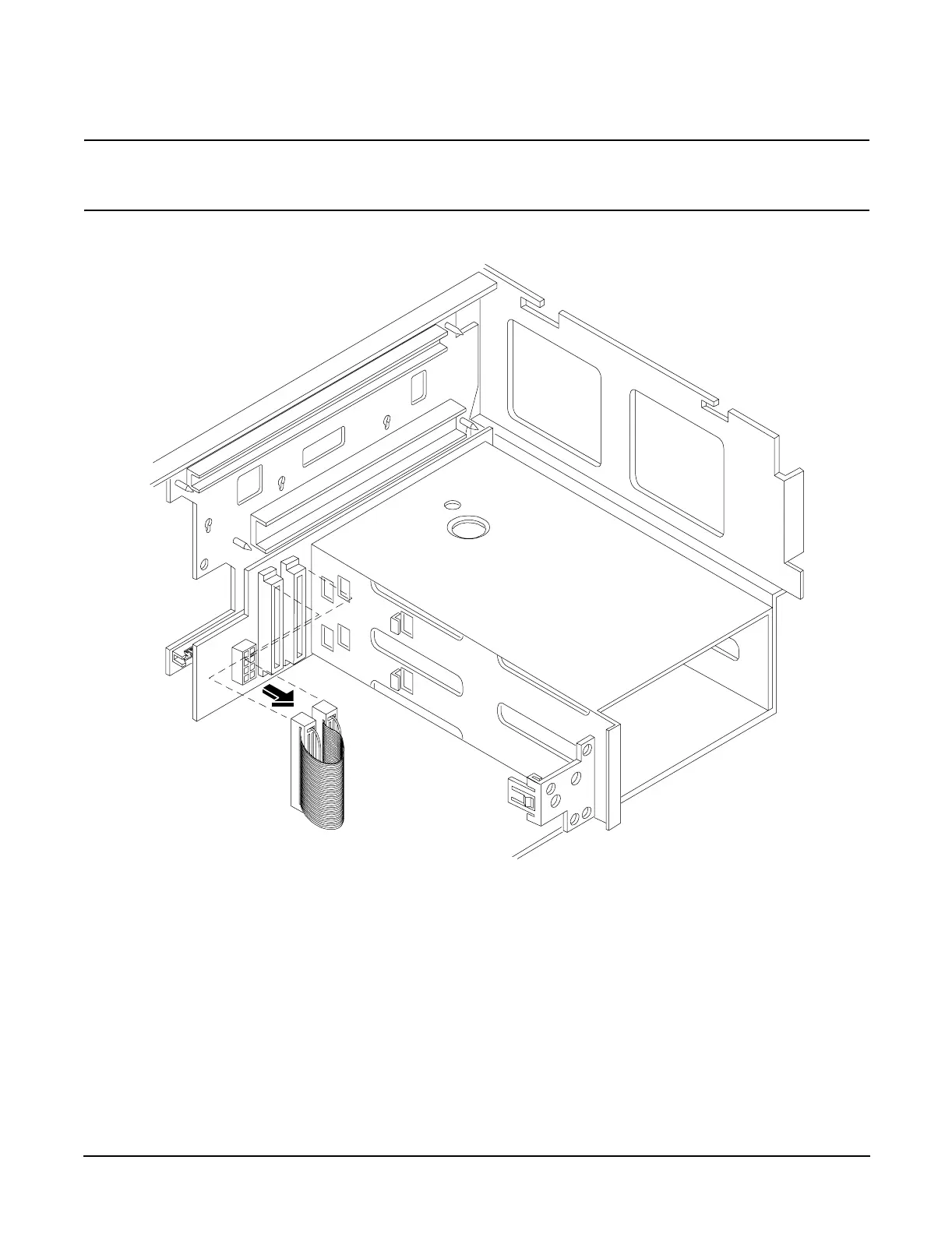

Figure 5-3 Replacing the SCSI Jumper Cable
Step 4. Using your finger, turn the swivel latch on top of the hot-plug hard disk drive cage to unlatch the
SCSI backplane board from the hard disk cage.
Step 5. Grasp the top edge of the SCSI backplane board and pull up until it releases from the keyway slots
on the back of the hot-plug disk drive cage.
