Chapter 5

U320 SCSI Enablement and Conversion Procedures

Introduction

Step 6. Verify the other end of SCSI cable B is connected to the SCSI B channel connector on the SCSI

adapter board. See Figure 5-6, “Installing SCSI Cable B to the SCSI Adapter Board.”

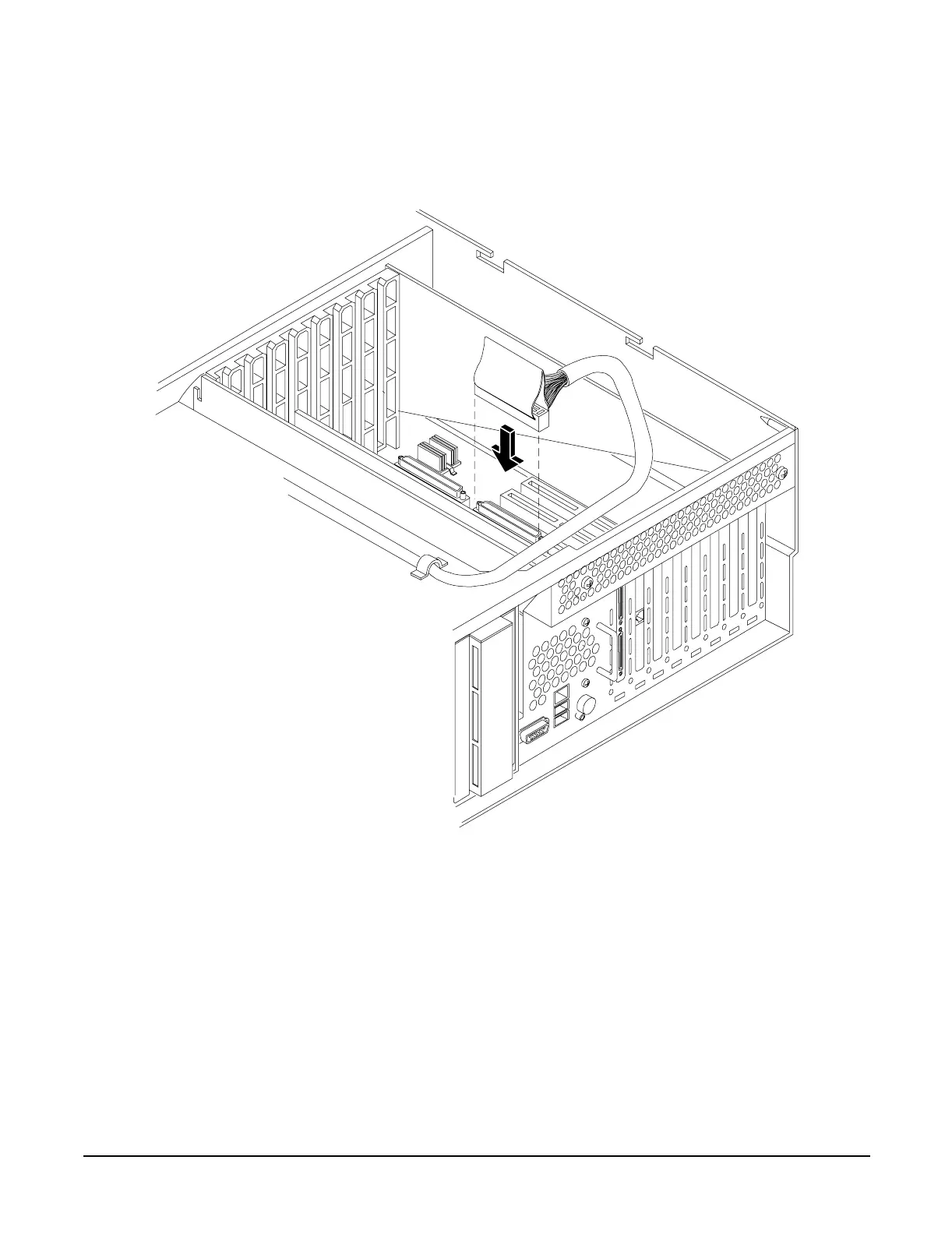

Figure 5-6Installing SCSI Cable B to the SCSI Adapter Board

Installing Server Components

Install the following components in the server chassis:

Step 1. Replace the two hot-plug disk drives into the disk drive cage.

Step 2. Install the processor extender board. See “Installing a Memory Extender Board” on page 26.

Step 3. Install the memory extender board. See “Installing the Processor Extender Board” on page 23.

Step 4. Install the front and top covers. See “Installing the Top Cover” on page 20 and See “Installing the

Front Cover” on page 18.

Step 5. Install the front bezel. See “Installing the Front Bezel” on page 16.
