Chapter 5
U320 SCSI Enablement and Conversion Procedures
Introduction
67
Installing the SCSI Duplex Board
Install the SCSI duplex board only if your system is configured for duplex operation. To install the duplex
board, perform the following steps:
Step 1. Align the bracket tabs with the slots on the side of the disk drive cage. See Figure 5-5, “Installing
the SCSI Duplex Board.”

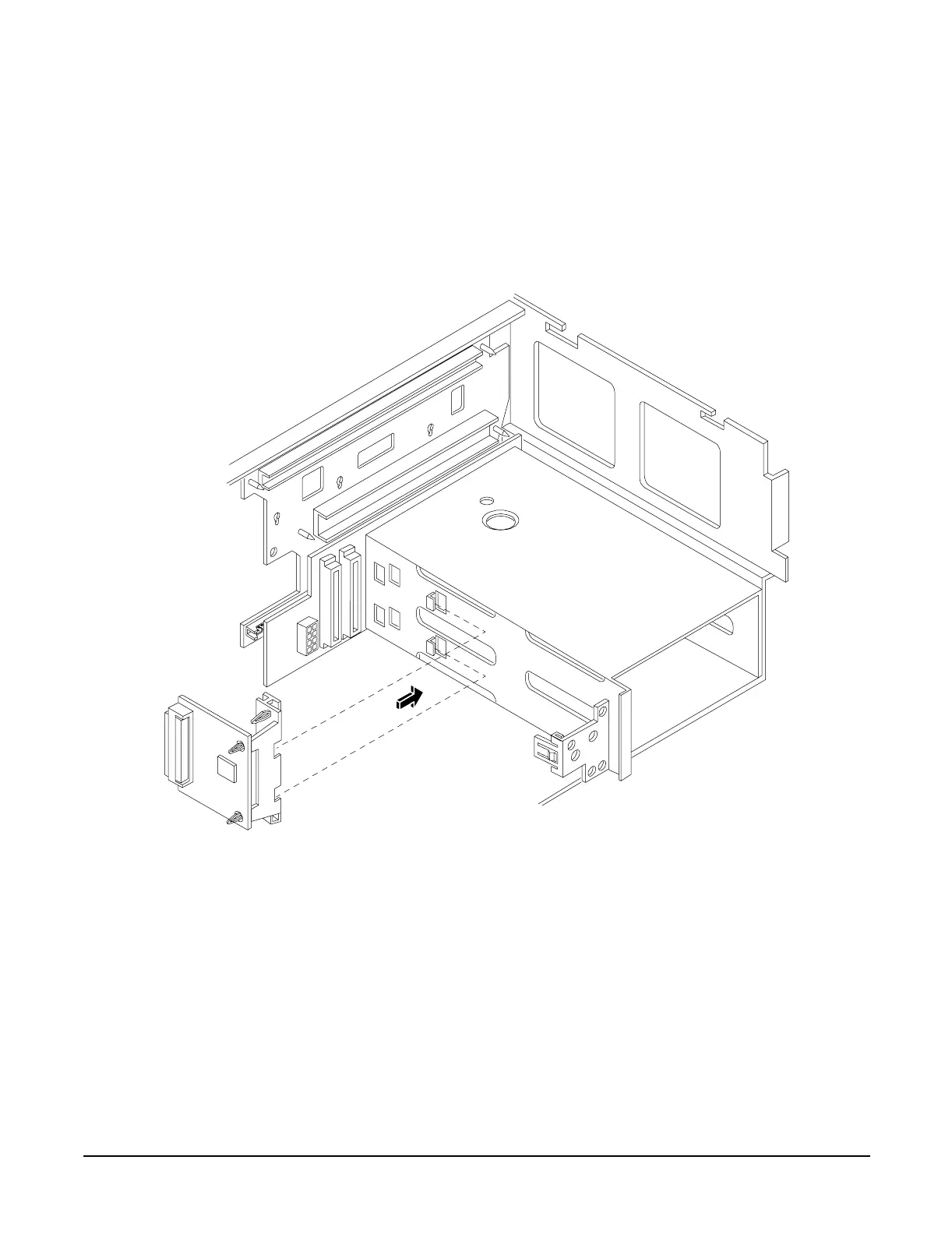

Figure 5-5Installing the SCSI Duplex Board
Step 2. Press the bracket against the disk drive cage until the bracket locks into place.
Step 3. Align the connector of the duplex board with the connector on the SCSI backplane.
Step 4. Press the board connector into the backplane connector.
Step 5. Plug the SCSI cable B connector into the SCSI connector located on the backplane next to the
duplex board. See Figure 5-1, “SCSI Cable B Connection to the SCSI Backplane.”
