HP Integrity rx4640 - Figure 4-2 Memory Extender Board

Chapter 4
Memory Extender Board Upgrade Procedures
Introduction
54
Step 2. Pull on the extraction levers to unplug the memory extender board from the socket located on the
midplane riser board and remove the memory extender board from the chassis. See Figure 4-2,
“Memory Extender Board.”

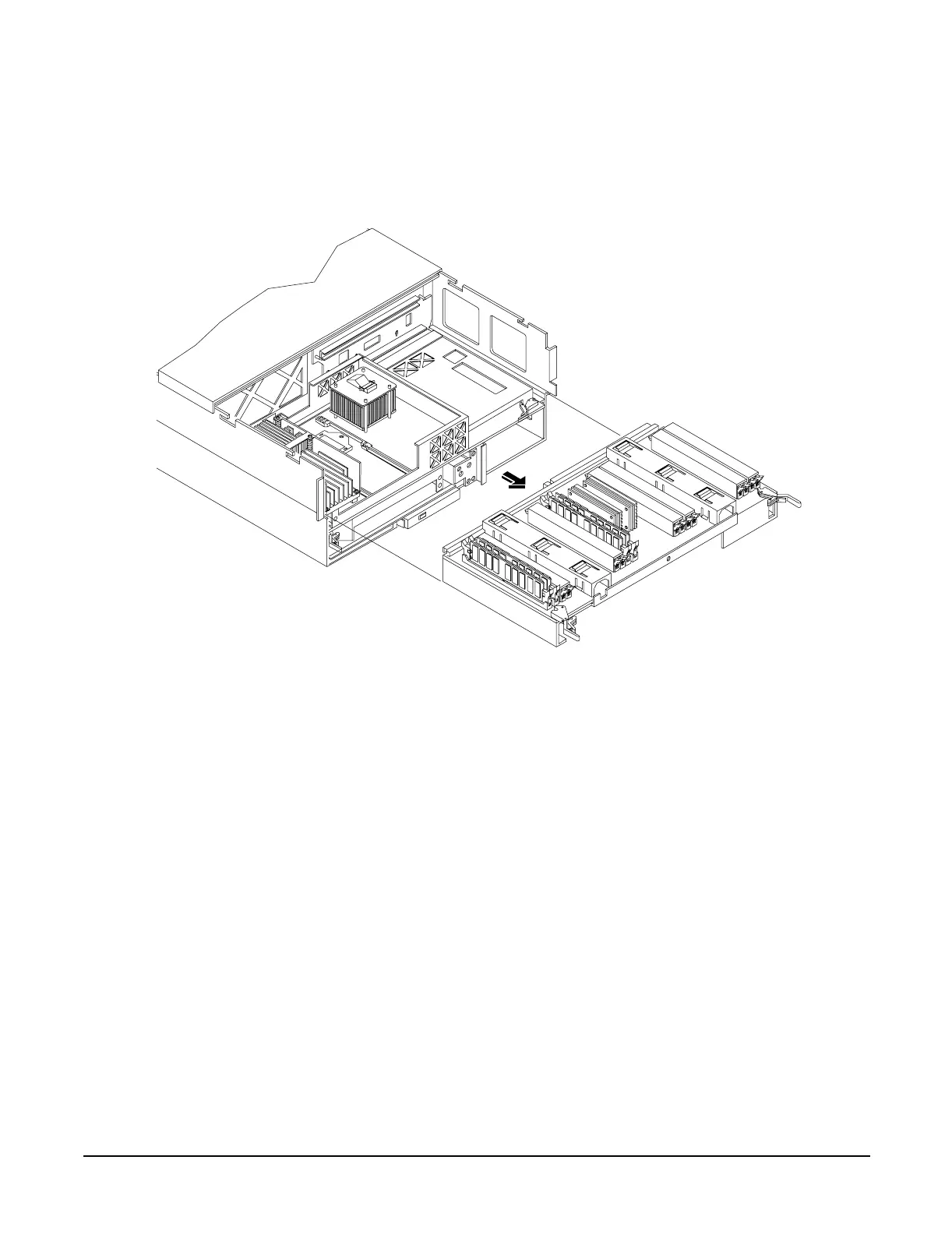

Figure 4-2 Memory Extender Board
