HP Integrity rx4640 - Removing the LAN Core I;O Card; Figure 6-5 LAN I;O Card Latch Location

Chapter 6
Removing and Replacing Core I/O Cards
Remove and Replace the LAN Core I/O Card
83
Removing the LAN Core I/O Card
To remove the LAN core I/O card in slot 2, perform the following steps:
Step 1. If rack mounted, slide the HP Server out from the rack until it stops. See “Accessing a Rack
Mounted Server” on page 77.
Step 2. Remove the top cover from the chassis. See “Top Cover” on page 80.
Step 3. Disconnect any LAN cables connected to the LAN core I/O card.
Step 4. Open the blue PCI card latch for slot 2 by twisting it clockwise.

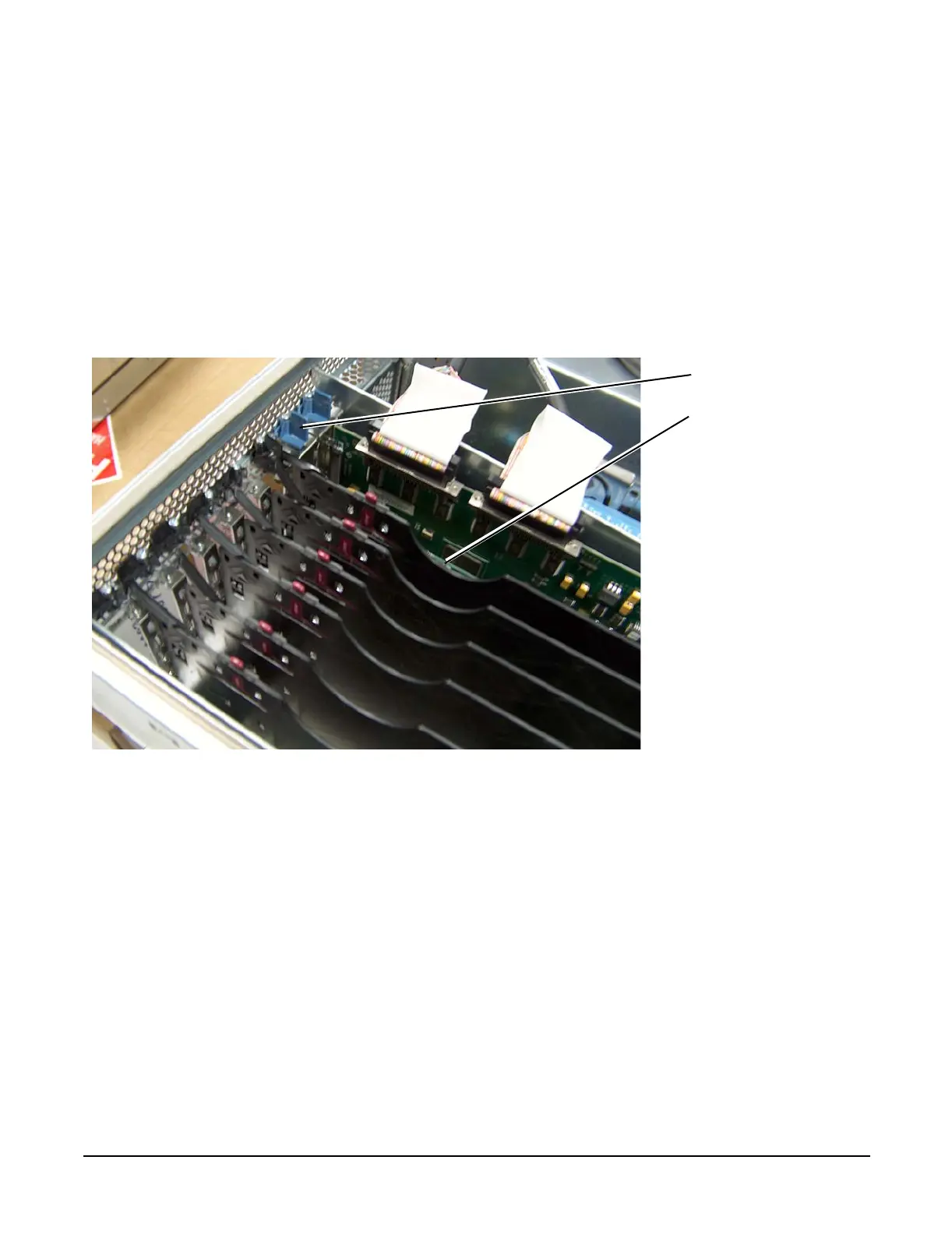

Figure 6-5 LAN I/O Card Latch Location
for slot 2 (closed)
LAN PCI I/O card latch
LAN PCI Card
