HP Integrity rx4640 - Removing the SCSI Core I;O Card; Figure 6-8 SCSI I;O Card Latch Location

Chapter 6
Removing and Replacing Core I/O Cards
Remove and Replace the SCSI Core I/O Card
86
Removing the SCSI Core I/O Card
To remove the SCSI core I/O card in slot 1, perform the following steps:
Step 1. If rack mounted, slide the HP Server out from the rack until it stops. See “Accessing a Rack
Mounted Server” on page 77.
Step 2. Remove the top cover from the chassis. See “Top Cover” on page 80.
Step 3. Disconnect any internal and external SCSI cables connected to the SCSI core I/O card.
Step 4. Open the blue PCI card latch for slot 1 by twisting it clockwise.

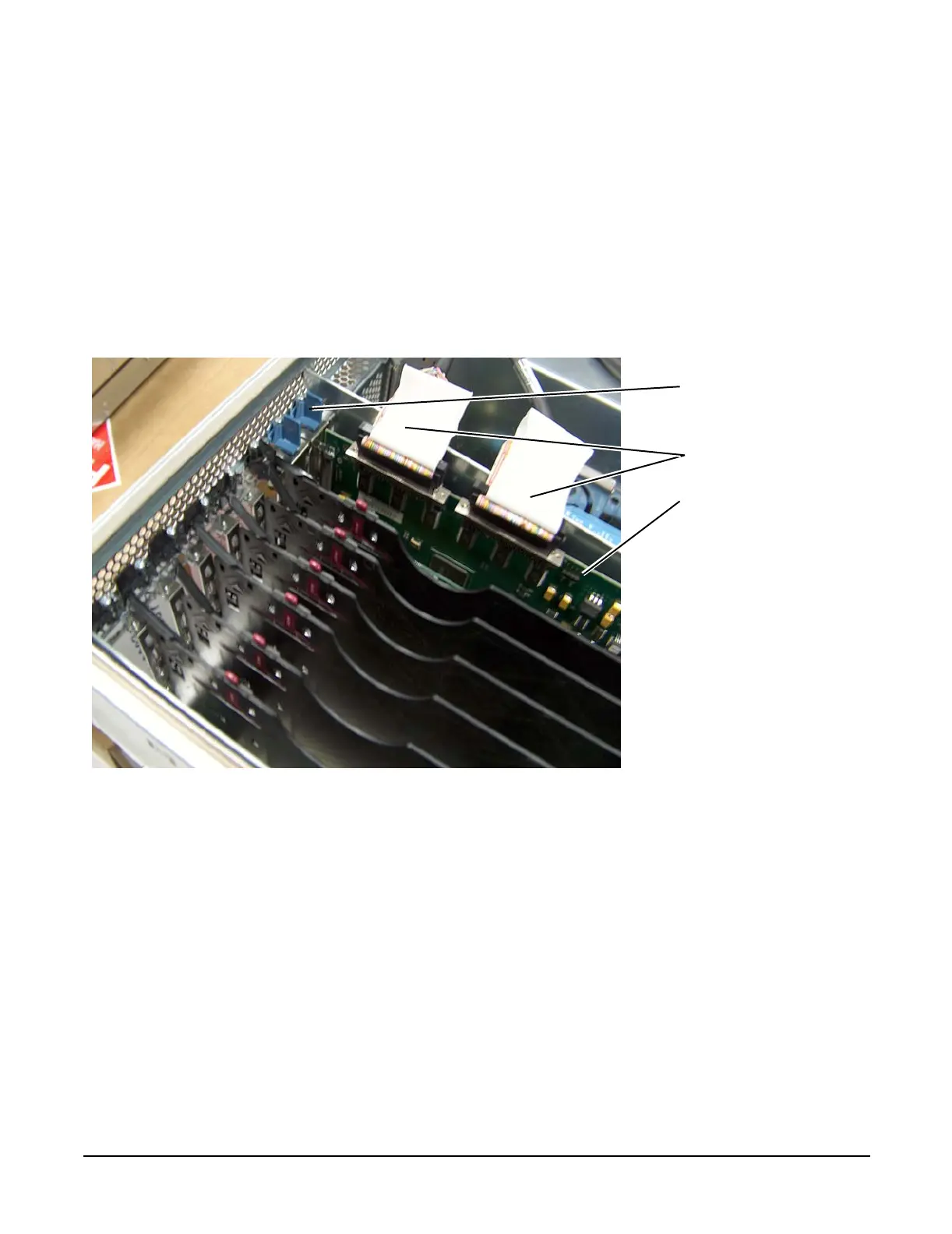

Figure 6-8 SCSI I/O Card latch Location
SCSI PCI I/O card latch
for slot 1 (closed)
SCSI cables
SCSI card
