Chapter 5

U320 SCSI Enablement and Conversion Procedures

Converting SCSI From Duplex to Simplex Operation

Step 2. Unplug the SCSI B cable connector from the SCSI Adapter board. See Figure 5-8, “Unplugging

SCSI B Cable from the SCSI Adapter Board.”

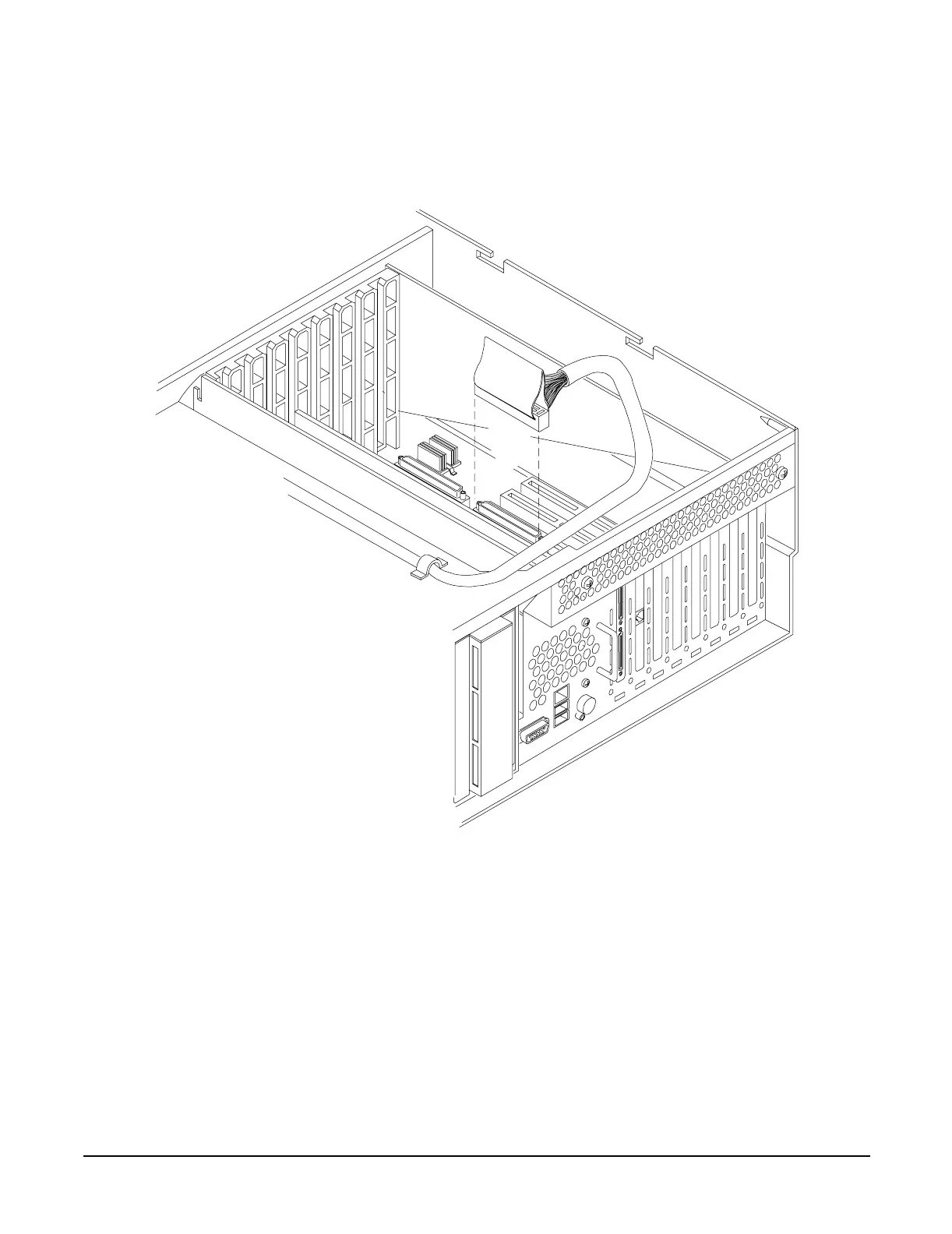

Figure 5-8Unplugging SCSI B Cable from the SCSI Adapter Board

Step 3. Secure the SCSI Channel B cable within the chassis.
