HP Integrity rx4640 Upgrade Guide

Chapter 2
Upgrade Procedures for 1.1 GHz mx2 Dual Processors (A9730A)
Introduction
38

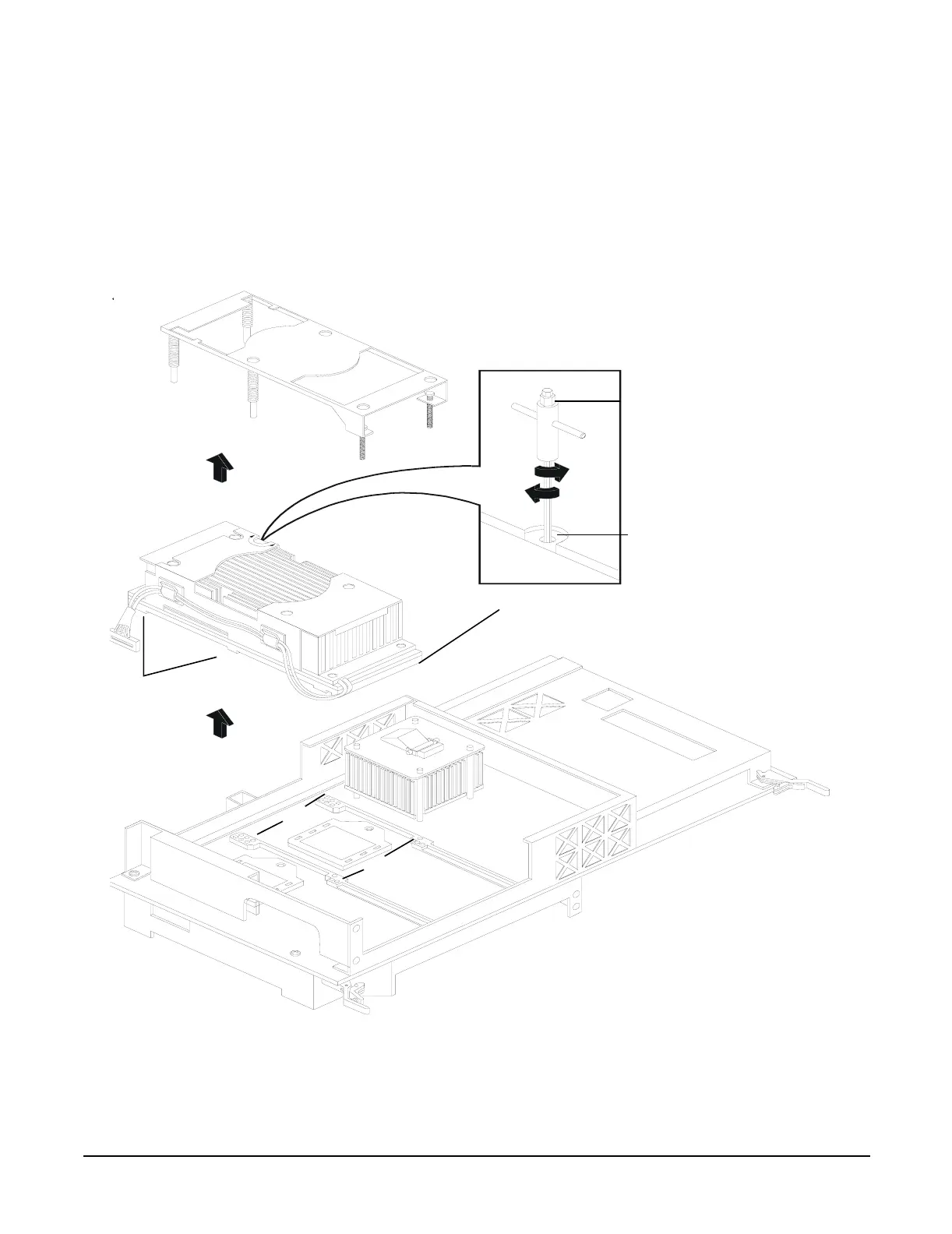

Figure 2-3 Installing Processor on Extender Board
Step 7. Using a flat blade screwdriver, tighten screws 5 and 6 shown in Figure 2-3, “Installing Processor on
Extender Board.”
Align pins on
heatsink with
slots in frame
Power cable protected by
plastic sleeve
slots*
slots*
*slots shown are at
CPU socket #1 for
clarity.
Processor shown is
being mounted on
socket #0 per CPU load
order.
1
3
2
4
5
6
Torx-T15
Use supplied
wrench for
tightening
shoulder screws
and thumbscrews
2.5MM Allen
Tightening sequence for 6-shoulder
screws is:
1,2,3,4,5,6
DO NOT OVERTIGHTEN!
