Chapter 5

U320 SCSI Enablement and Conversion Procedures

Converting SCSI From Duplex to Simplex Operation

Step 1. Unplug the SCSI B cable from the backplane. See Figure 5-7, “Unplugging SCSI B Cable from the

SCSI Backplane.”

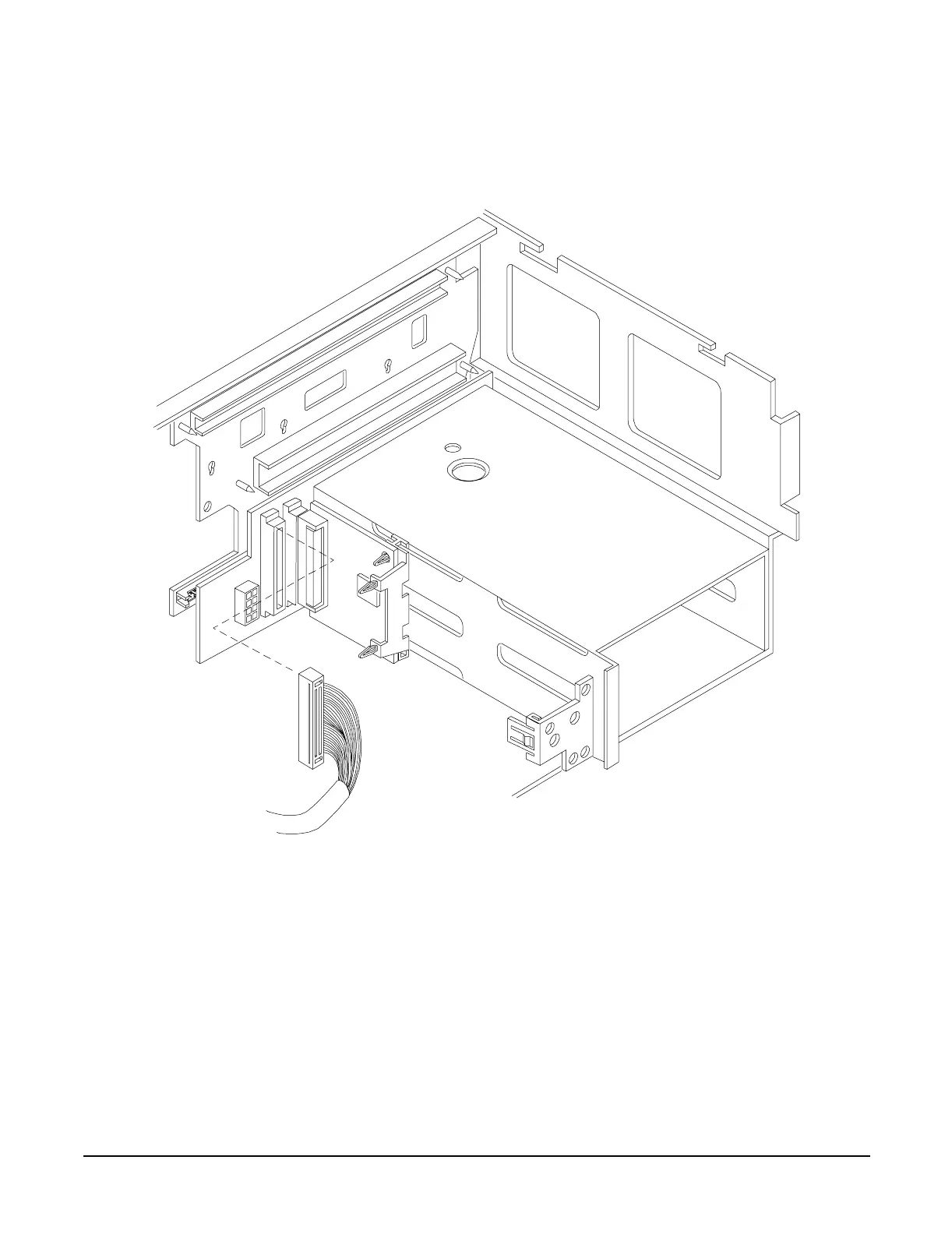

Figure 5-7Unplugging SCSI B Cable from the SCSI Backplane
