Installing DIMMs
To install DIMMs in the upgrade memory extender board, perform the following steps:
Step 1. Align the DIMM with the socket located on the memory extender board.
Step 2. Gently and evenly push on each side of the DIMM until it seats in the socket. Ensure that the
extraction levers are in the closed position.

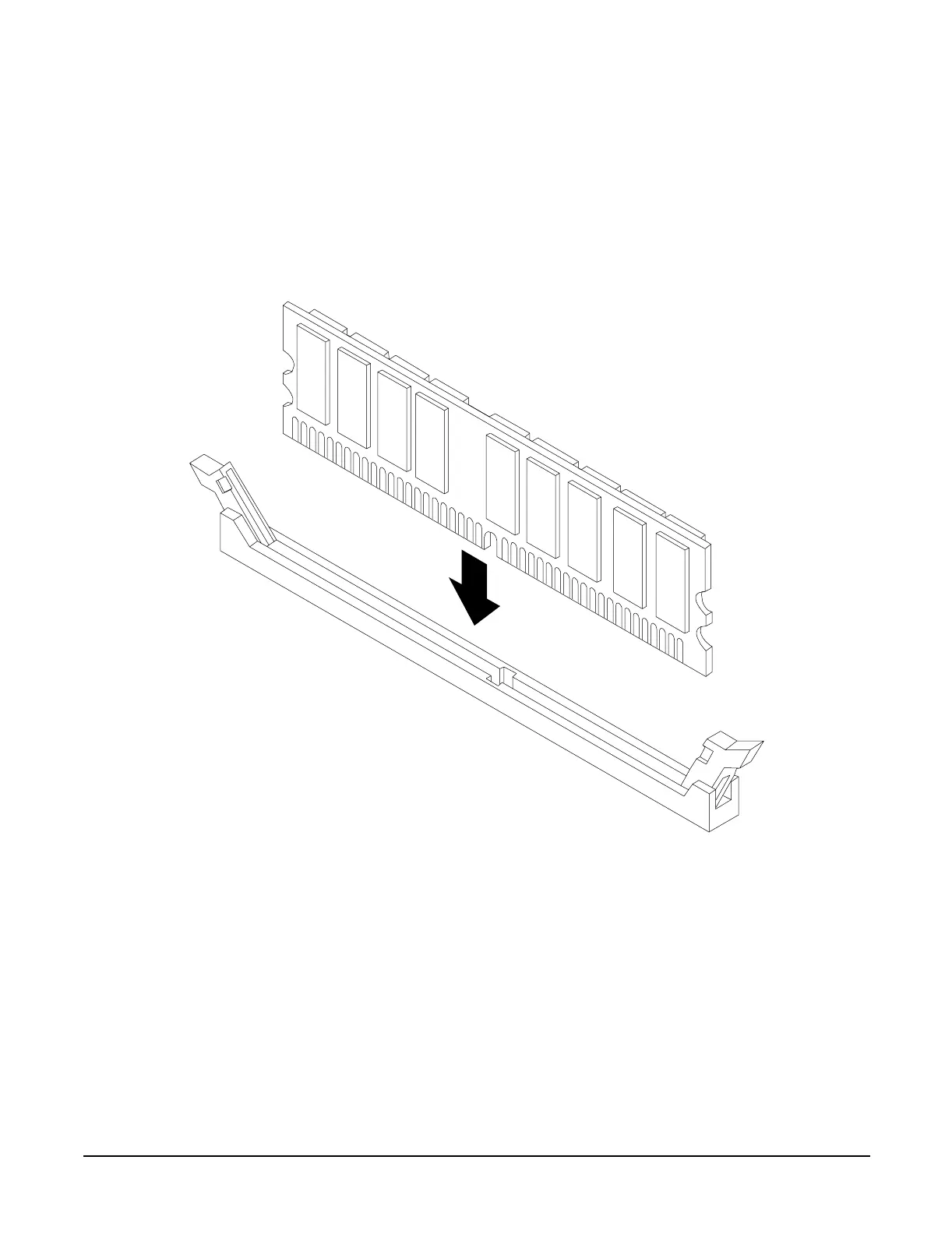

Figure 4-5 Inserting DIMM into Extender Board Slot
Replacing a Memory Extender Board
To replace the memory extender board, perform the following steps:
Step 1. Ensure the extraction levers are positioned in the outward, unlocked position.
Step 2. Align the memory extender board with the front and rear chassis guide slots.
Step 3. Slide the memory extender board in until it begins to seat in the socket located on the midplane
board.
Step 4. Push the extraction levers inward to the locked position in order to plug in the memory extender
board into the midplane riser board.
Step 5. Install the front top cover. See “Installing the Top Cover” on page 20.
