HP LaserJet P2015 Series

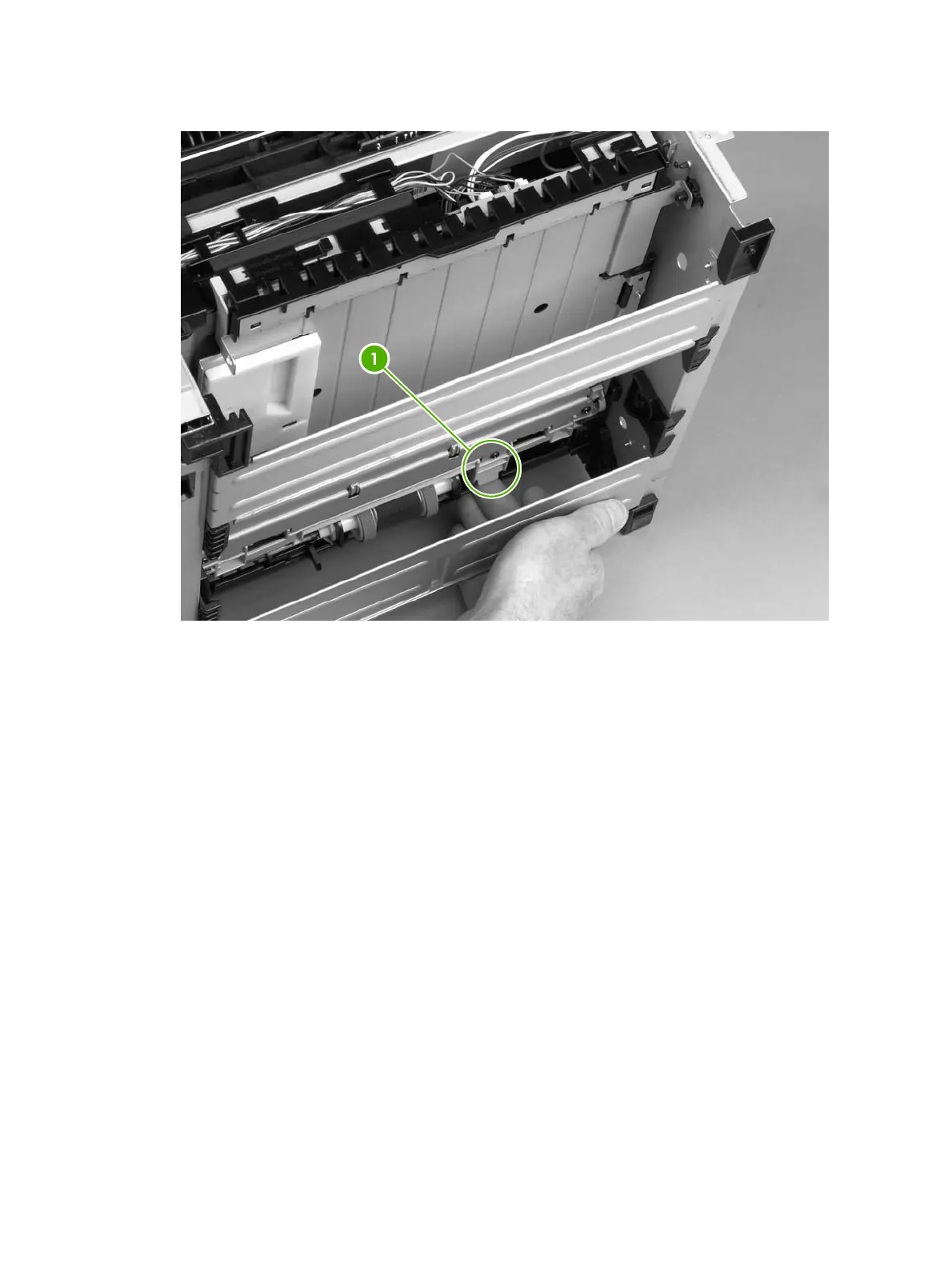

2. Pull the duplexer tray release-tab (1) to release the duplexer tray magnets.
Figure 6-5 Removing the duplexer tray
3. Pull out the duplexer tray.
Top cover
1. Remove the left-side cover, the right-side cover, the back cover, and the duplexer tray.
90 Chapter 6 Removal and replacement ENWW
