Formatter
1. Remove the left-side cover.
2. Disconnect one cable (1) at the top of the formatter.
3. Disconnect one flat, flexible cable (2) at the top of the formatter.
CAUTION Do not fold flat, flexible cables. Also, do not straighten pre-folds in flat,
flexible cables.
4. Disconnect one flat, flexible cable (3) at the bottom of the formatter.
5. Disconnect one cable (4) at the bottom of the formatter.
6. Remove four screws (5).

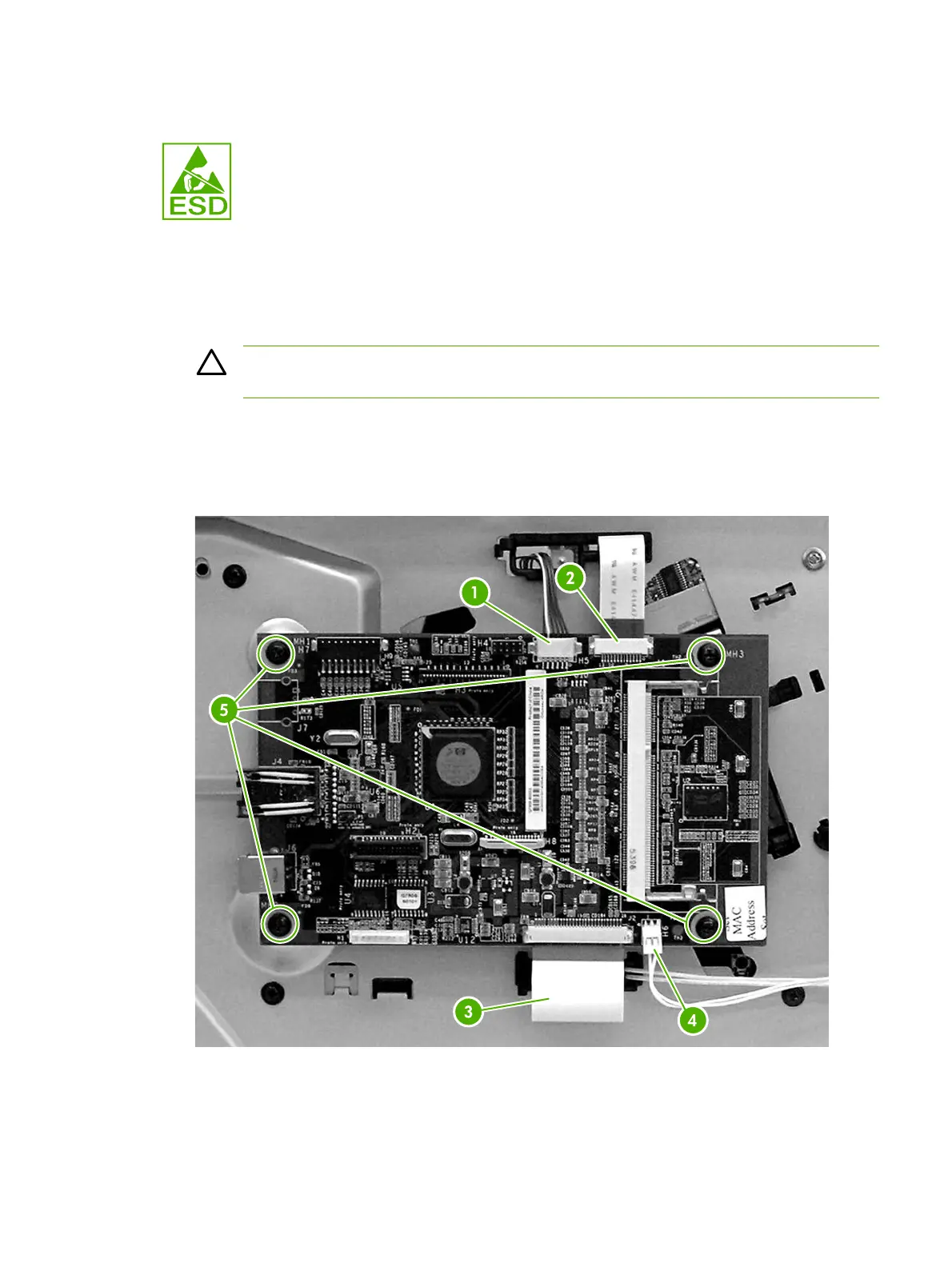

Figure 6-12 Removing the formatter
7. Remove the formatter.
ENWW Formatter 97
