Laser/scanner
1. Remove all covers.
2. Disconnect one flat, flexible cable (1) from the laser/scanner PCA.
3. Disconnect one cable (2) from the top of the laser/scanner.
4. Unthread all cables (3) from the laser/scanner cable guides.
NOTE Examine the cable routing as you unthread the cables.
5. Remove four screws (4).

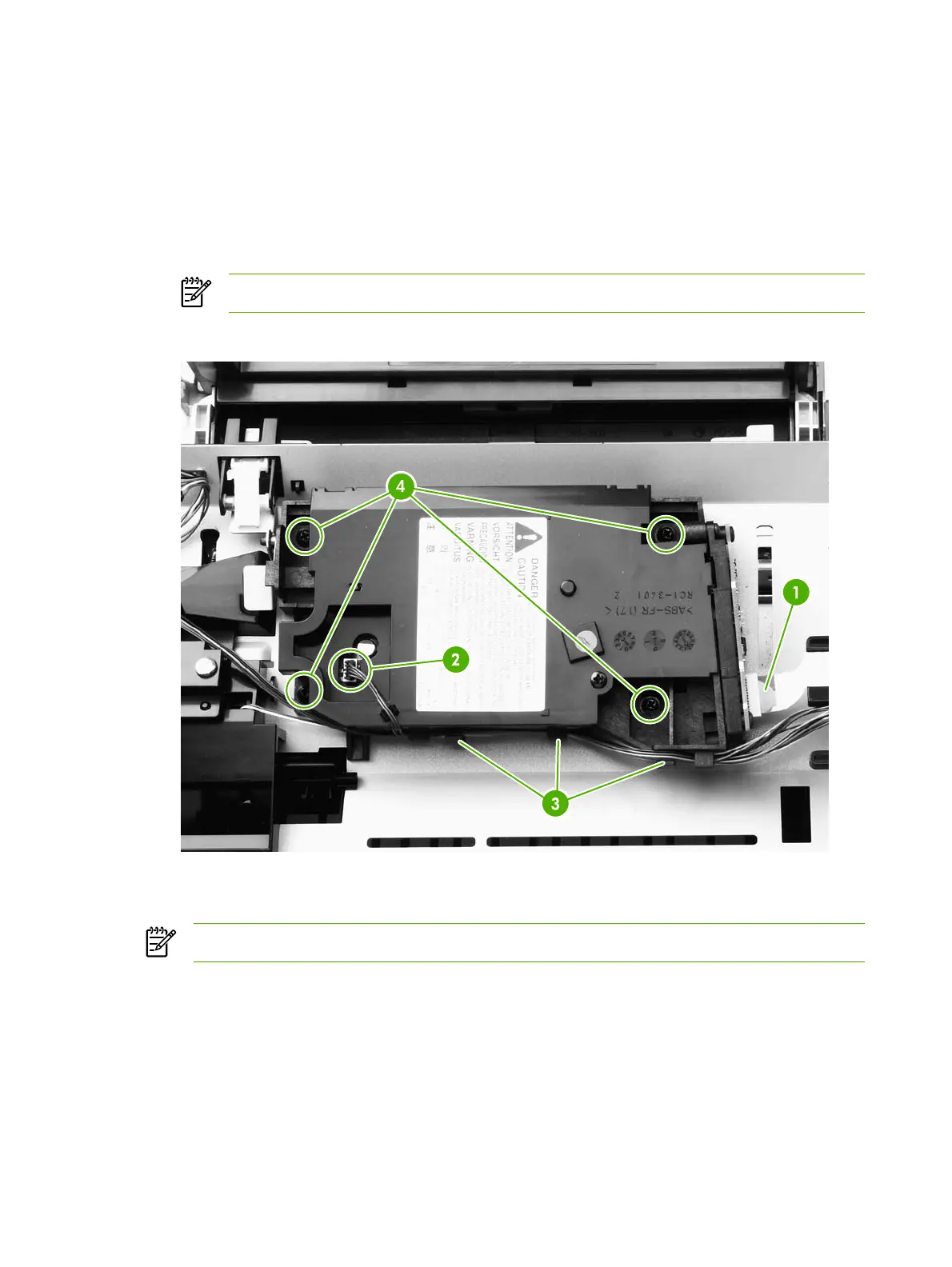

Figure 6-13 Removing the laser/scanner
6. Lift the laser/scanner out of the printer.
NOTE Examine the shutter switch as you lift the laser/scanner out of the printer.
98 Chapter 6 Removal and replacement ENWW
