Covers
Left-side cover
1. Open the print-cartridge door.
2. At the back of the printer, use a flat-blade screwdriver to release two tabs (1).

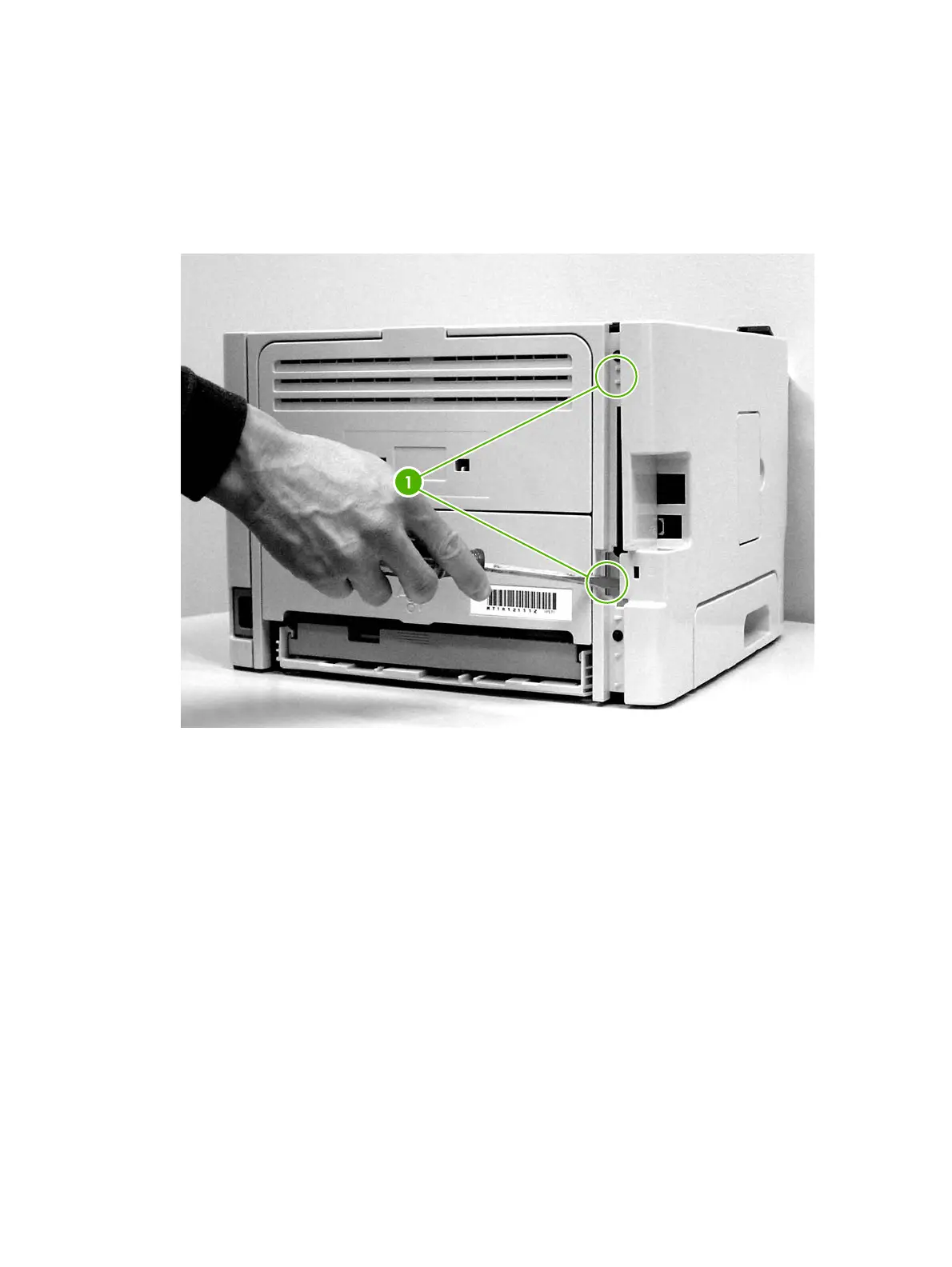

Figure 6-1 Removing the left-side cover (1 of 2)
3. Lift the cover away from the printer.
Right-side cover
1. Open the print-cartridge door.
2. Remove tray 2.
86 Chapter 6 Removal and replacement ENWW
