HP LaserJet P2015 Series

Laser/scanner system
The laser/scanner system receives video signals from the dc controller and the formatter and
converts the signals into latent images on the photosensitive drum.

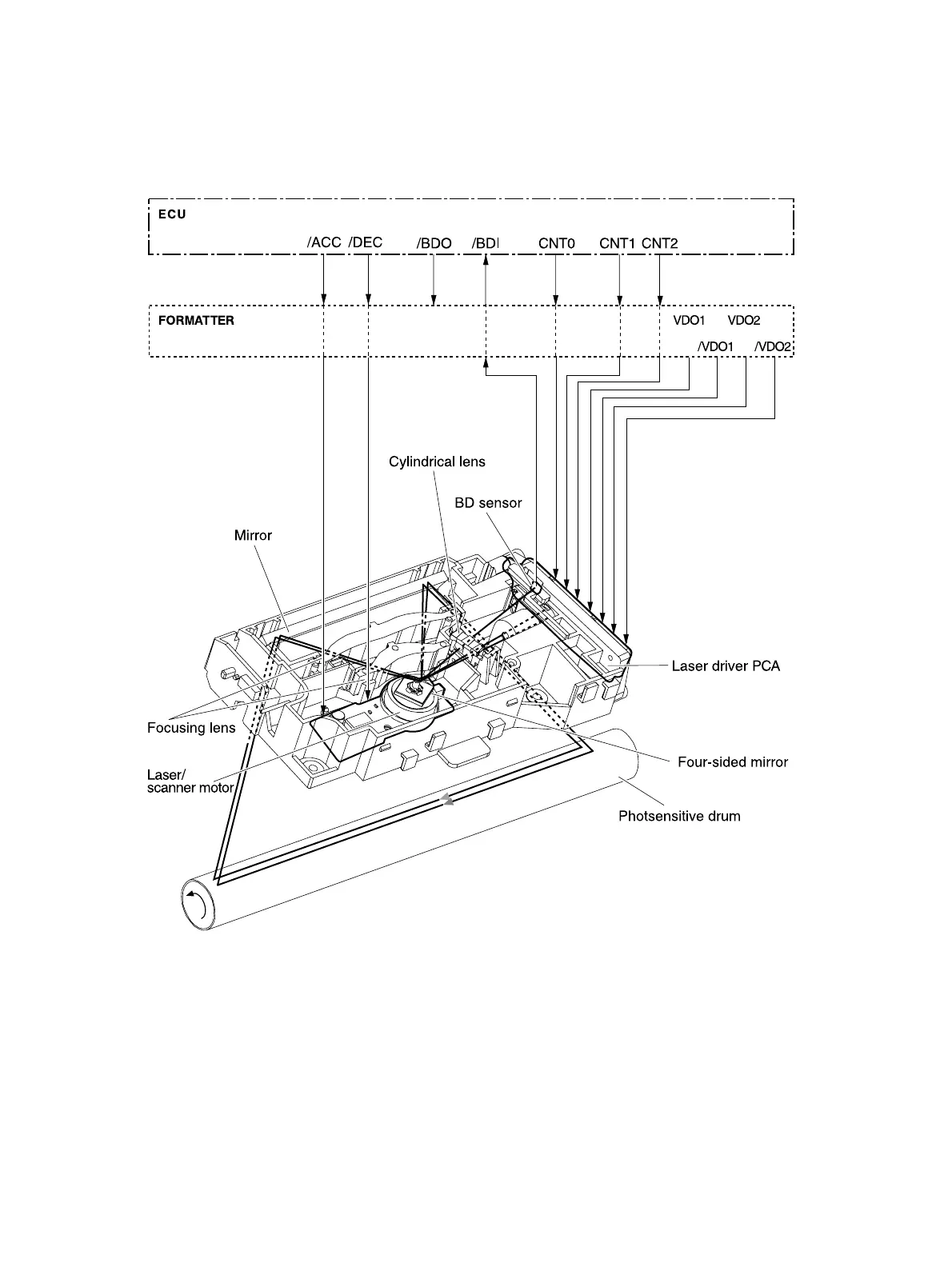

Figure 5-5 Laser/scanner system
76 Chapter 5 Theory of operation ENWW
