HP LaserJet P2015 Series

Main motor
1. Remove all covers.
2. Remove the fan.
3. Remove the duplex-drive gears.
4. Remove the formatter.
5. Remove the fuser.
6. Remove the interlock assembly.
7. Remove the ECU.
8. Remove three screws (1).

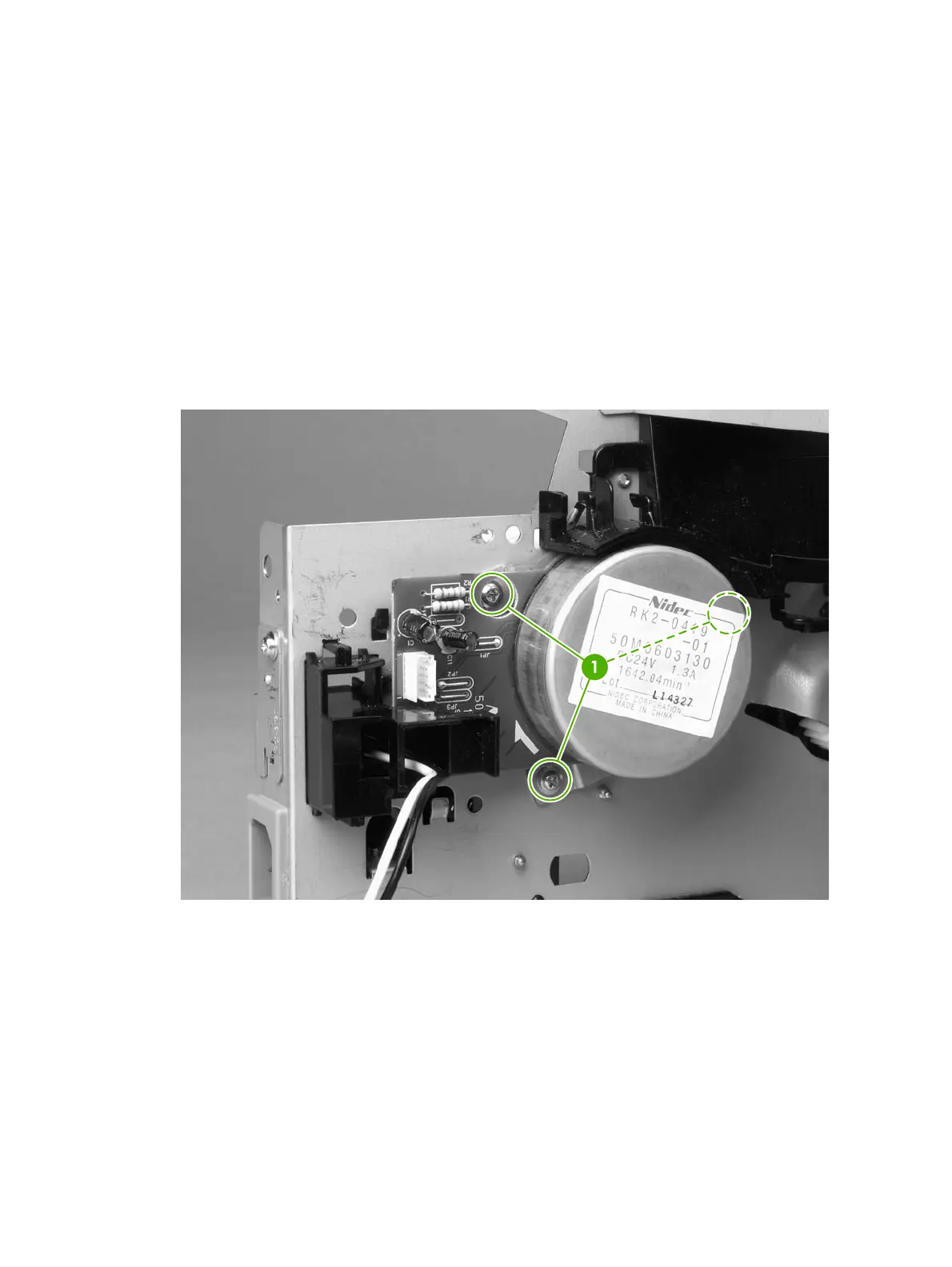

Figure 6-41 Removing the main motor (1 of 2)
126 Chapter 6 Removal and replacement ENWW
