4. Lift the assembly away from the printer.

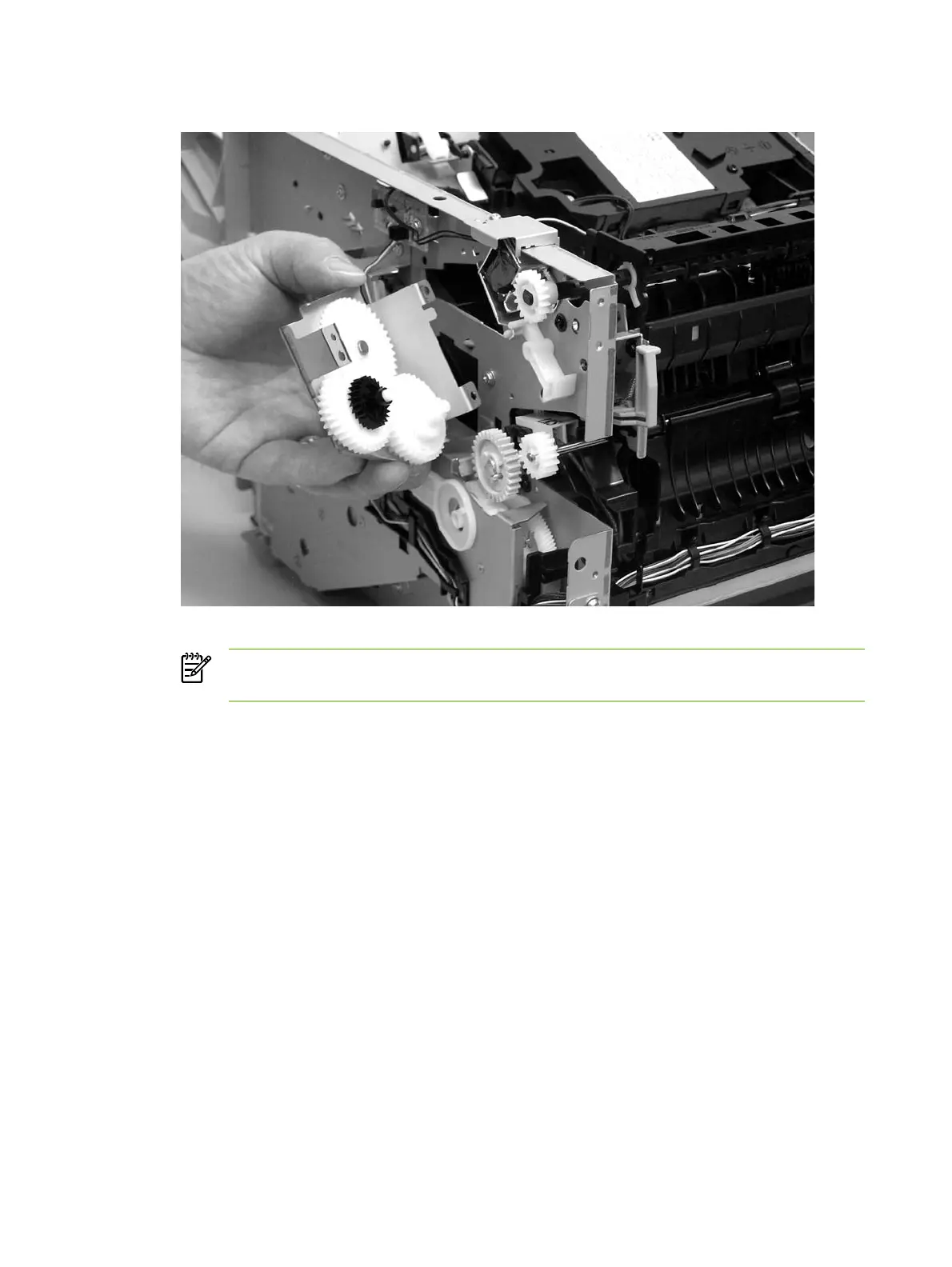

Figure 6-21 Removing the duplex-drive gears (2 of 2)
NOTE The gears are not attached to the gear plate. Carefully remove the gear plate
and the gears together to prevent them from falling out of the assembly.
Duplex solenoid (HP LaserJet P2015d, P2015dn, and P2015x
printers only)
1. Remove all covers.
2. Remove the fan.
3. Remove the duplex-drive gears.
4. Disconnect one cable (1) at the duplex-drive PCA.
106 Chapter 6 Removal and replacement ENWW
