Main gear assembly/tray 2 pickup solenoid
1. Remove all covers.
2. Remove the fan from the printer chassis.
3. Disconnect one cable (1) at the ECU.

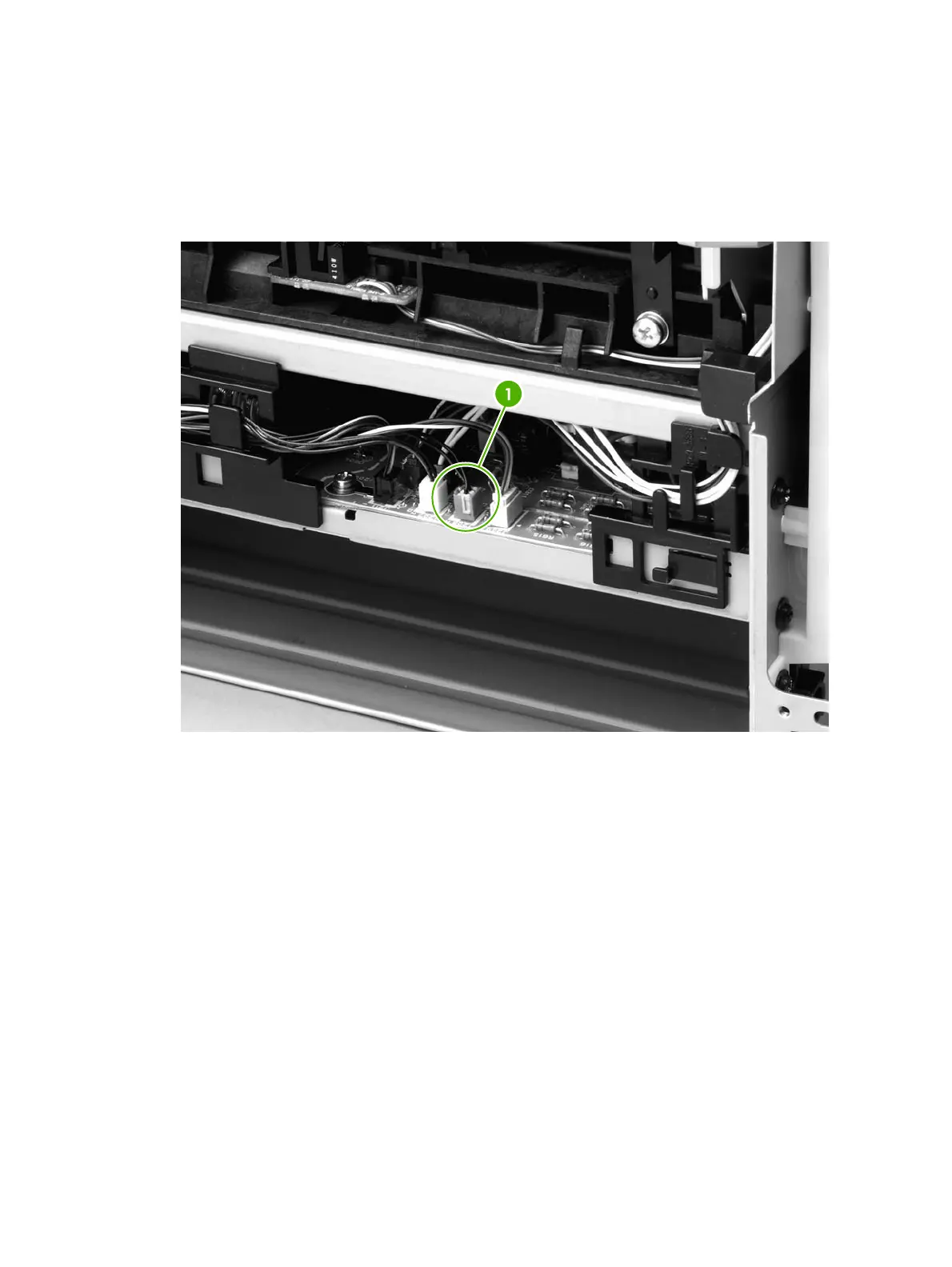

Figure 6-45 Removing the main gear assembly (1 of 2)
4. Remove the duplex-drive PCA from the printer chassis.
5. Release the tab on the gear (1) and slide the gear off the shaft.
6. Remove the cables from the cable guide (2).
130 Chapter 6 Removal and replacement ENWW
