HP LaserJet P2015 Series

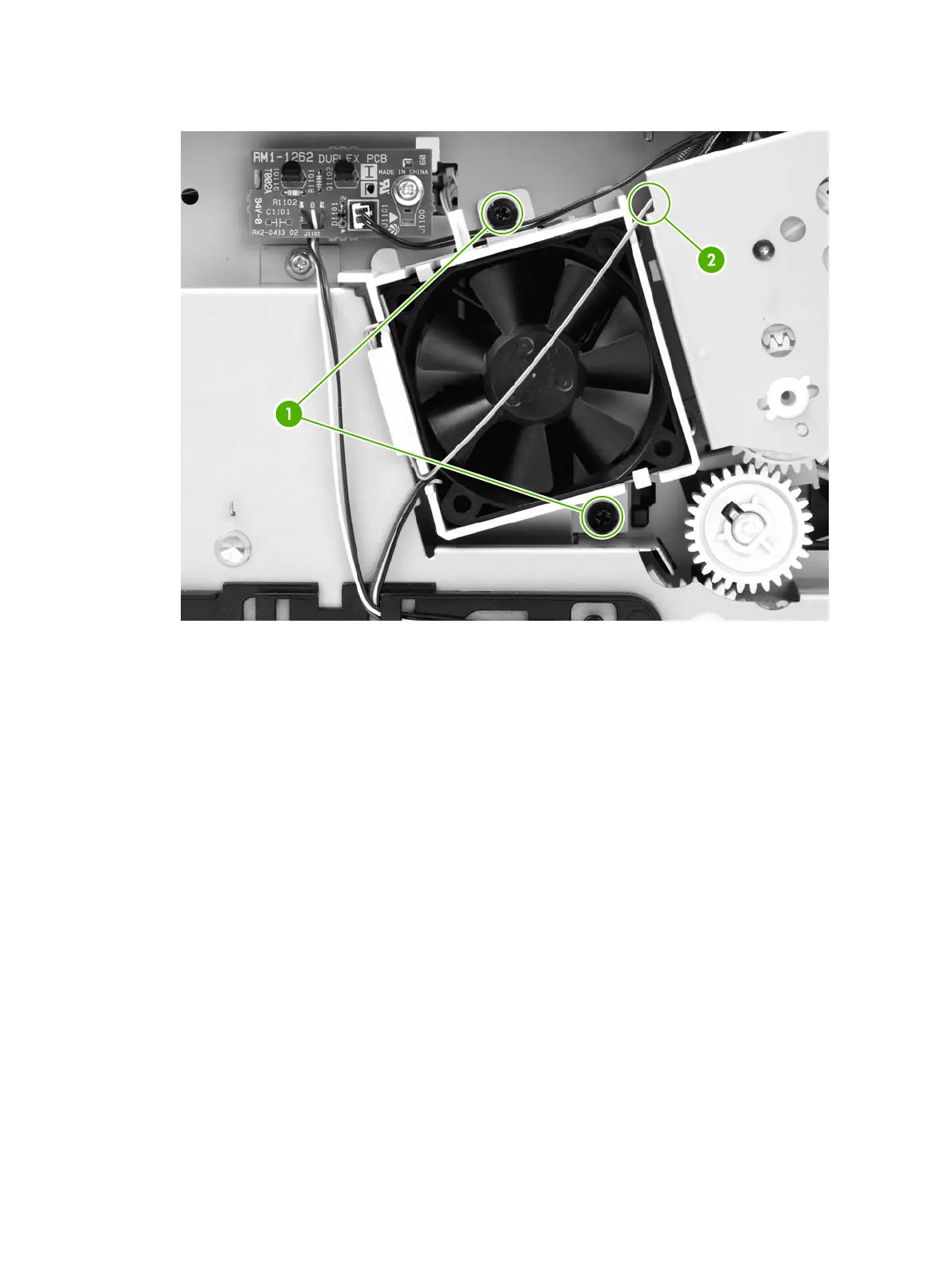

5. Unhook the fan clip (2) and then lift the fan off the printer.
Figure 6-19 Removing the fan (2 of 2)
Duplex-drive gears (HP LaserJet P2015d, P2015dn, and P2015x
printers only)
1. Remove all covers.
2. Remove the fan.
104 Chapter 6 Removal and replacement ENWW
