Pickup and feed assemblies
This section covers the major assemblies of the pickup and feed system: the transfer roller and the
registration assembly.
Transfer roller
NOTE It is important to make sure that the transfer roller needs to be replaced before
removing it. Excess handling can cause additional damage.
1. Open the print-cartridge door and remove the print cartridge.
2. Use needle-nose pliers to release the transfer roller tabs at the end of the roller, near the right
side of the printer.
CAUTION Do not break the tabs, and do not touch the rollers.

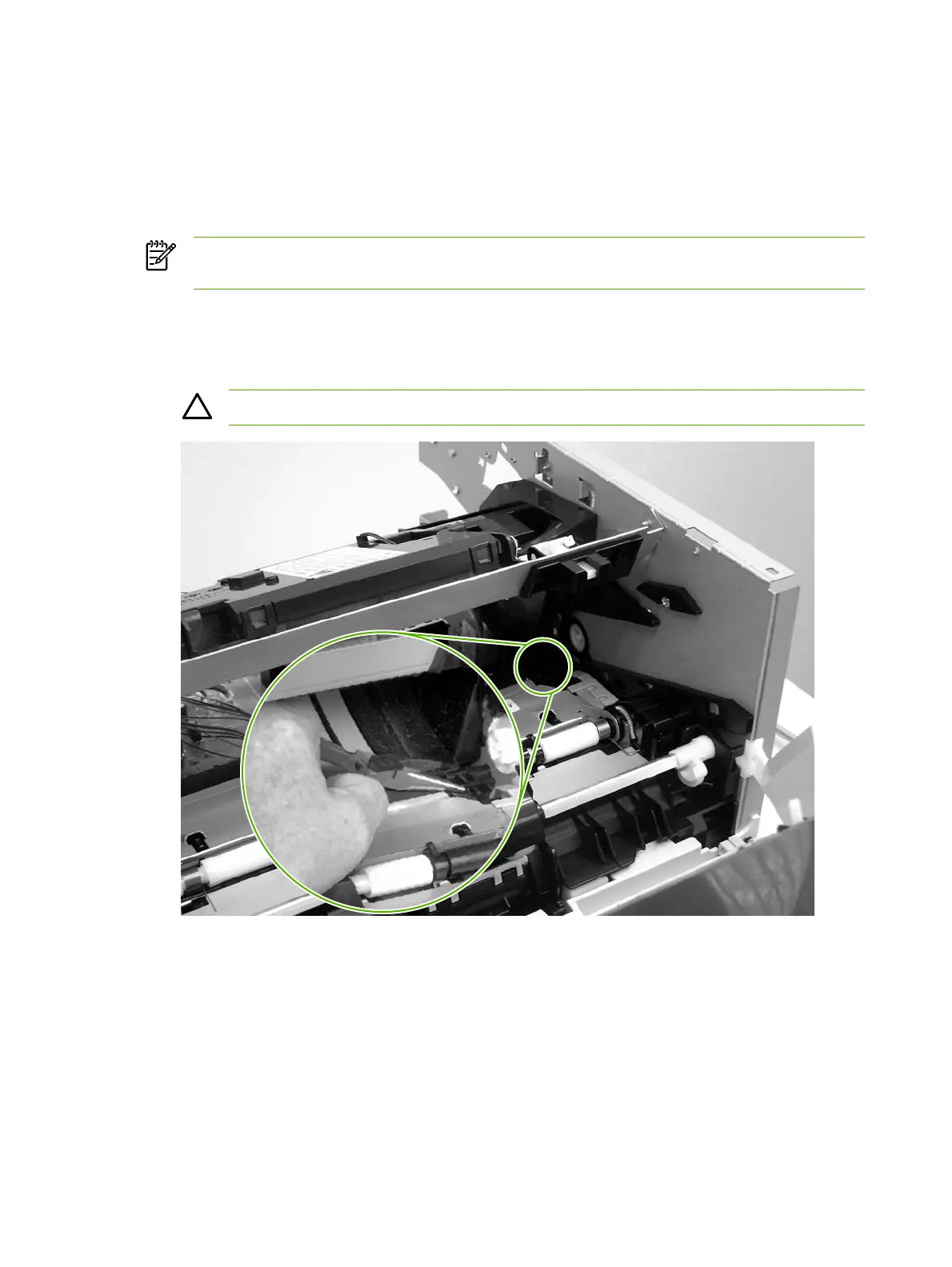

Figure 6-43 Removing the transfer roller
3. Lift up the end of the roller near the right side of the printer, and then slide it toward the right
side of the printer while pulling it out of the printer.
128 Chapter 6 Removal and replacement ENWW
