Interlock assembly
1. Remove all covers.
2. Open the print-cartridge door.
3. Remove two screws (1) that secure the interlock assembly to the left side of the printer chassis.
4. Remove two cables (2).

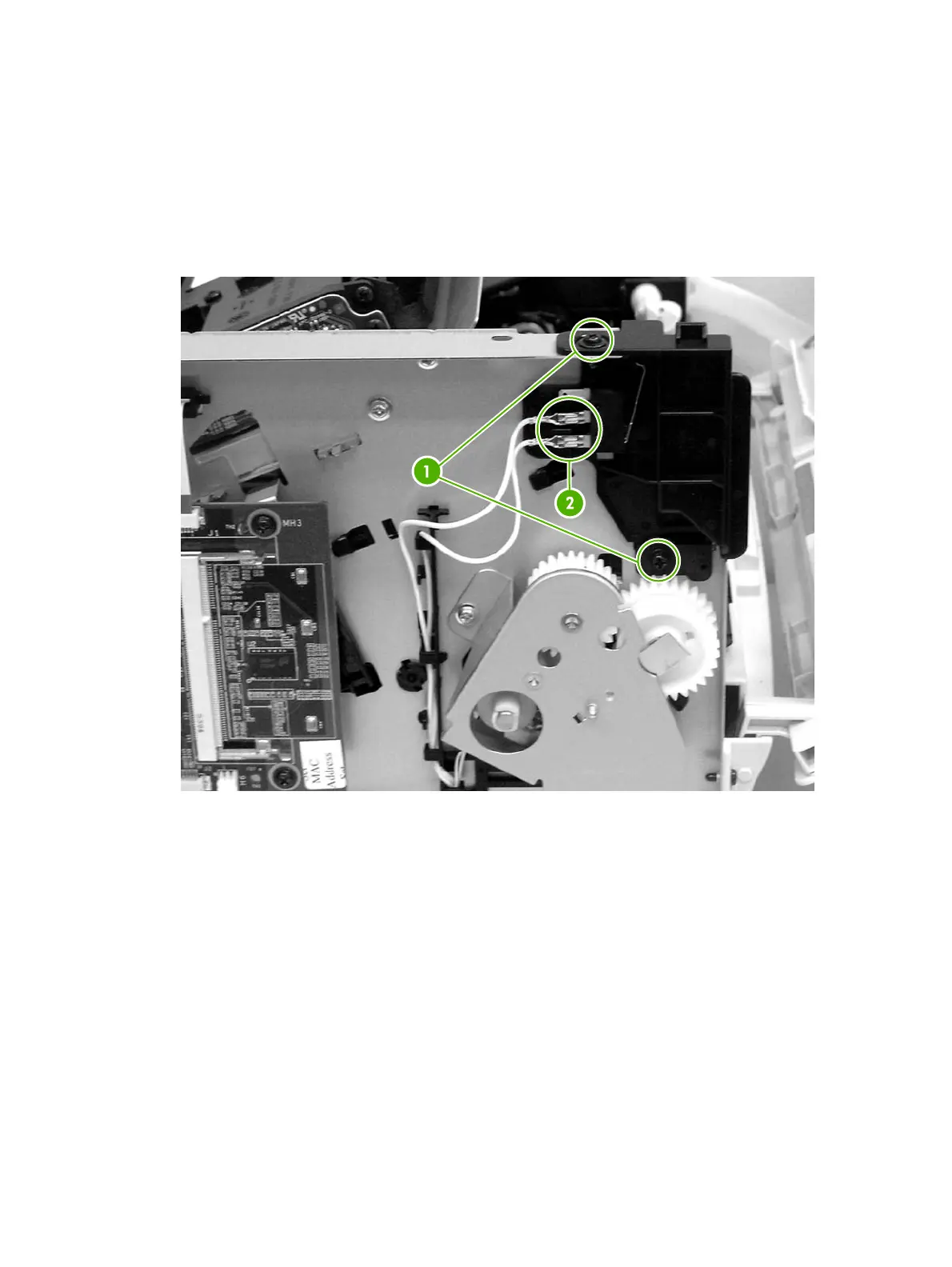

Figure 6-33 Removing the interlock assembly (1 of 2)
5. Lift the interlock assembly away from the printer.
118 Chapter 6 Removal and replacement ENWW
