Fuser
Several parts must be removed before you can remove the fuser. The following parts are included in
this section about removing the fuser:
●
Fan
● Duplex-drive gears/face-down gears
●
Duplex solenoid
●
Fuser
Fan
1. Remove all covers.

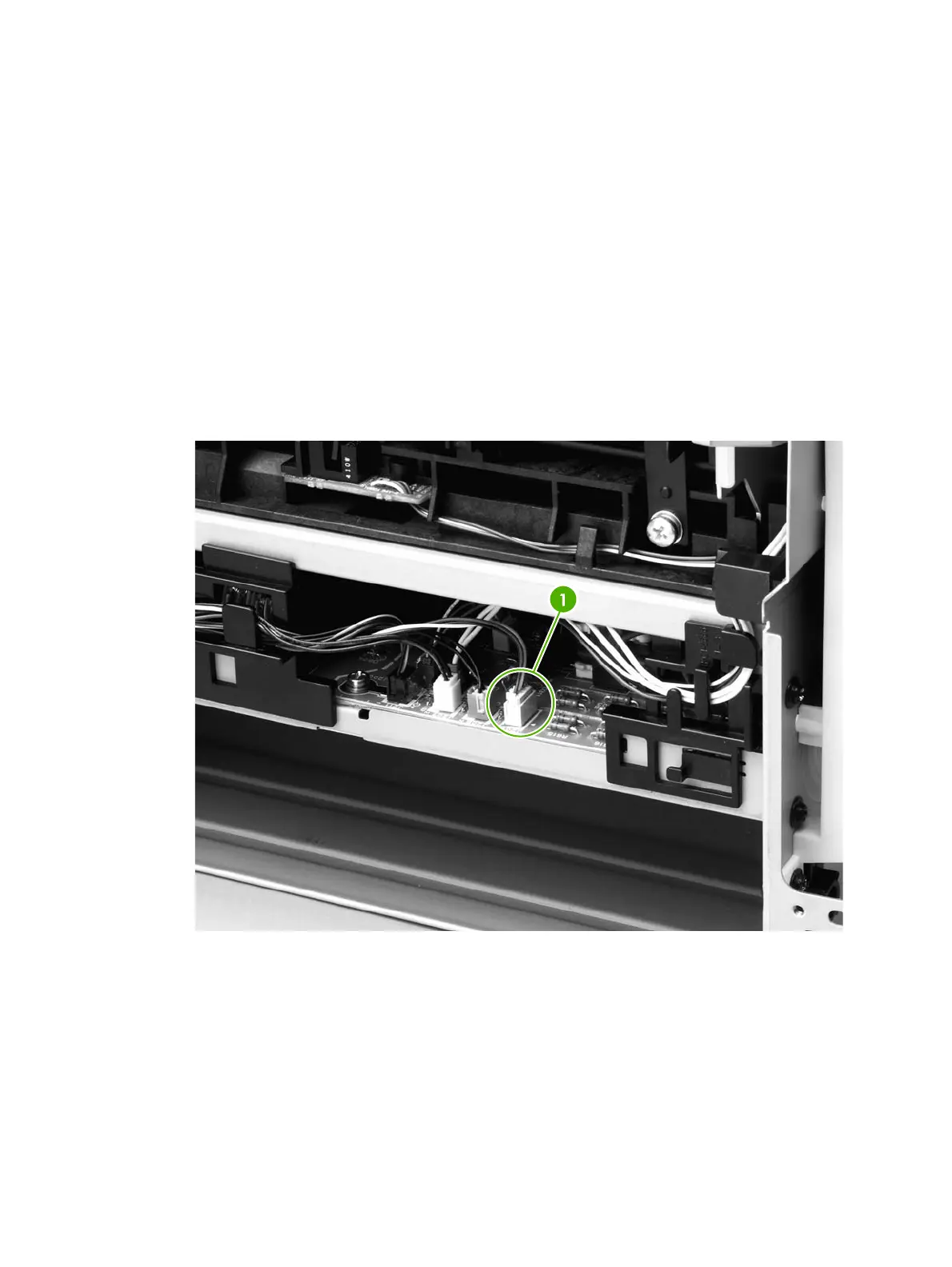

2. Disconnect the fan cable (1) at the ECU.
Figure 6-18 Removing the fan (1 of 2)
3. Unthread the fan wires from the retaining clips.
4. Remove two screws (1).
ENWW Fuser 103
