Memory-tag-reader assembly
1. Remove all covers.
2. Remove the fan from the printer chassis.
3. Remove one cable (1) from the top of the memory-tag-reader cover.
4. Disconnect one cable (2) from the formatter.

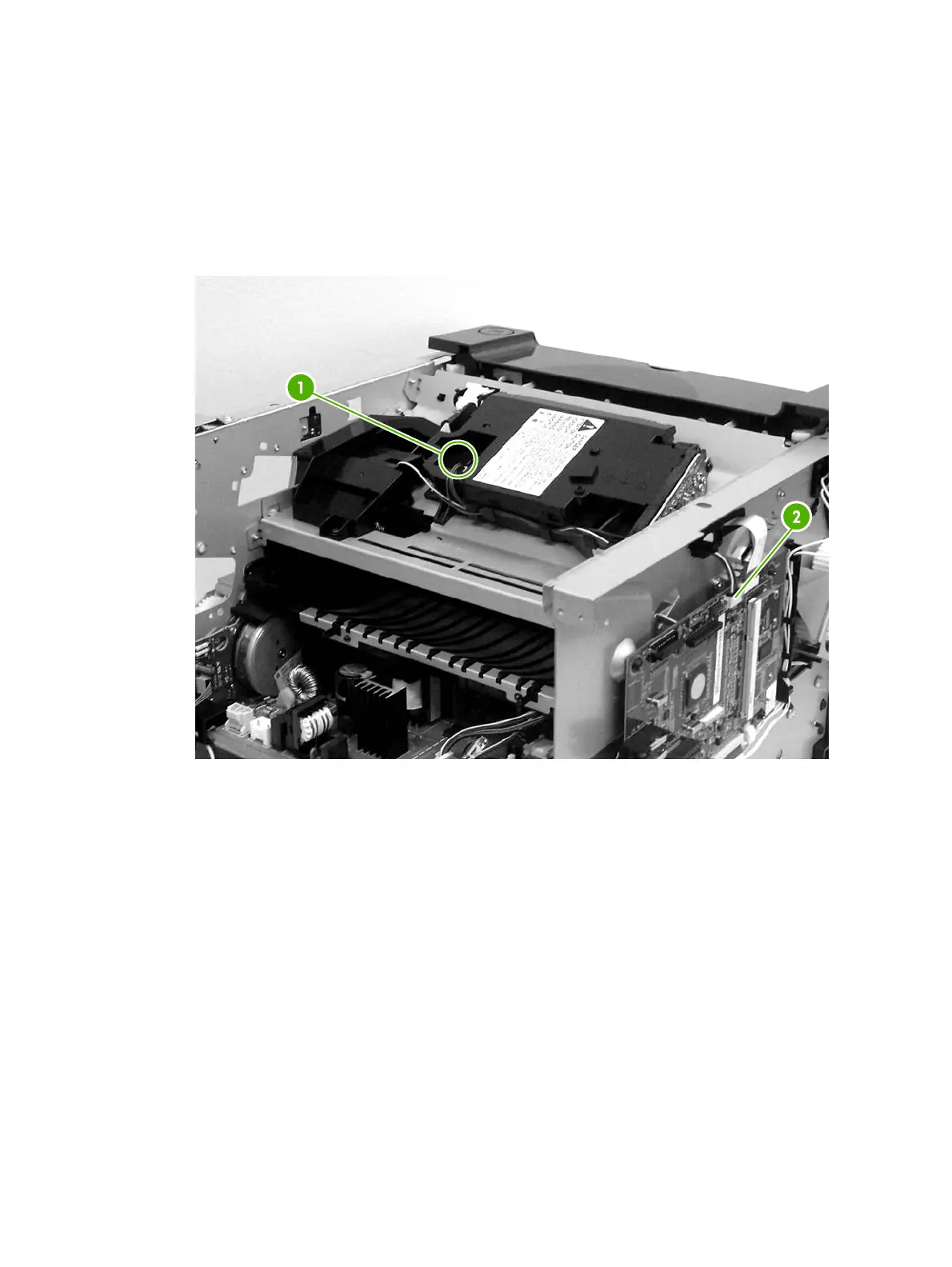

Figure 6-14 Removing the memory-tag-reader assembly (1 of 2)
ENWW Memory-tag-reader assembly 99
