HP LaserJet P2015 Series

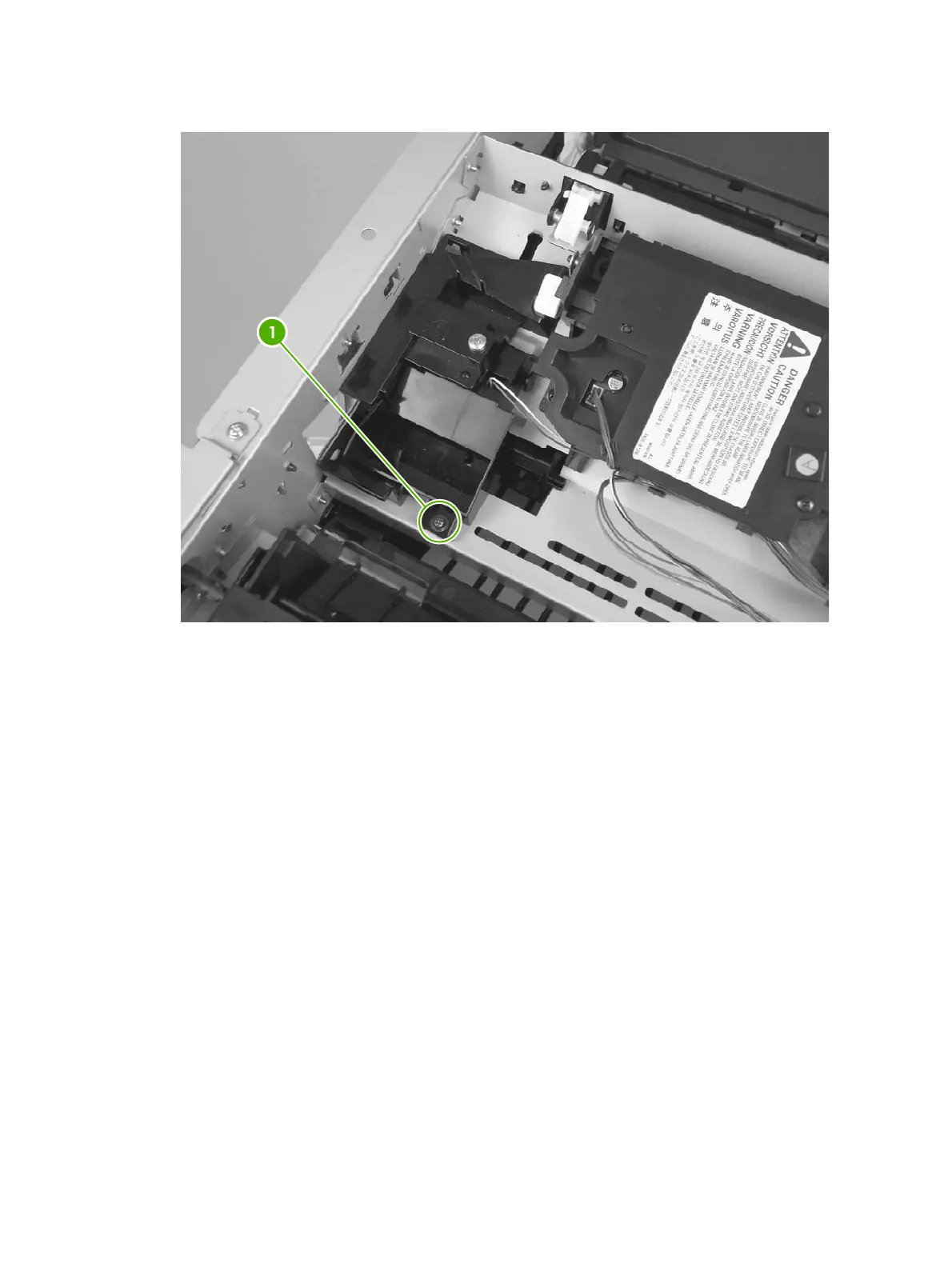

5. Remove one screw (1).
Figure 6-15 Removing the memory-tag-reader assembly (2 of 2)
6. Lift the back of the memory-tag-reader assembly slightly, and then slide the assembly toward
the back of the printer to release it from the laser/scanner plate.
100 Chapter 6 Removal and replacement ENWW
