ECU
1. Remove all covers.
2. Remove the fan.
3. Remove the duplex-drive gears.
4. Remove the formatter.
5. Remove the fuser.
6. Remove the interlock assembly.

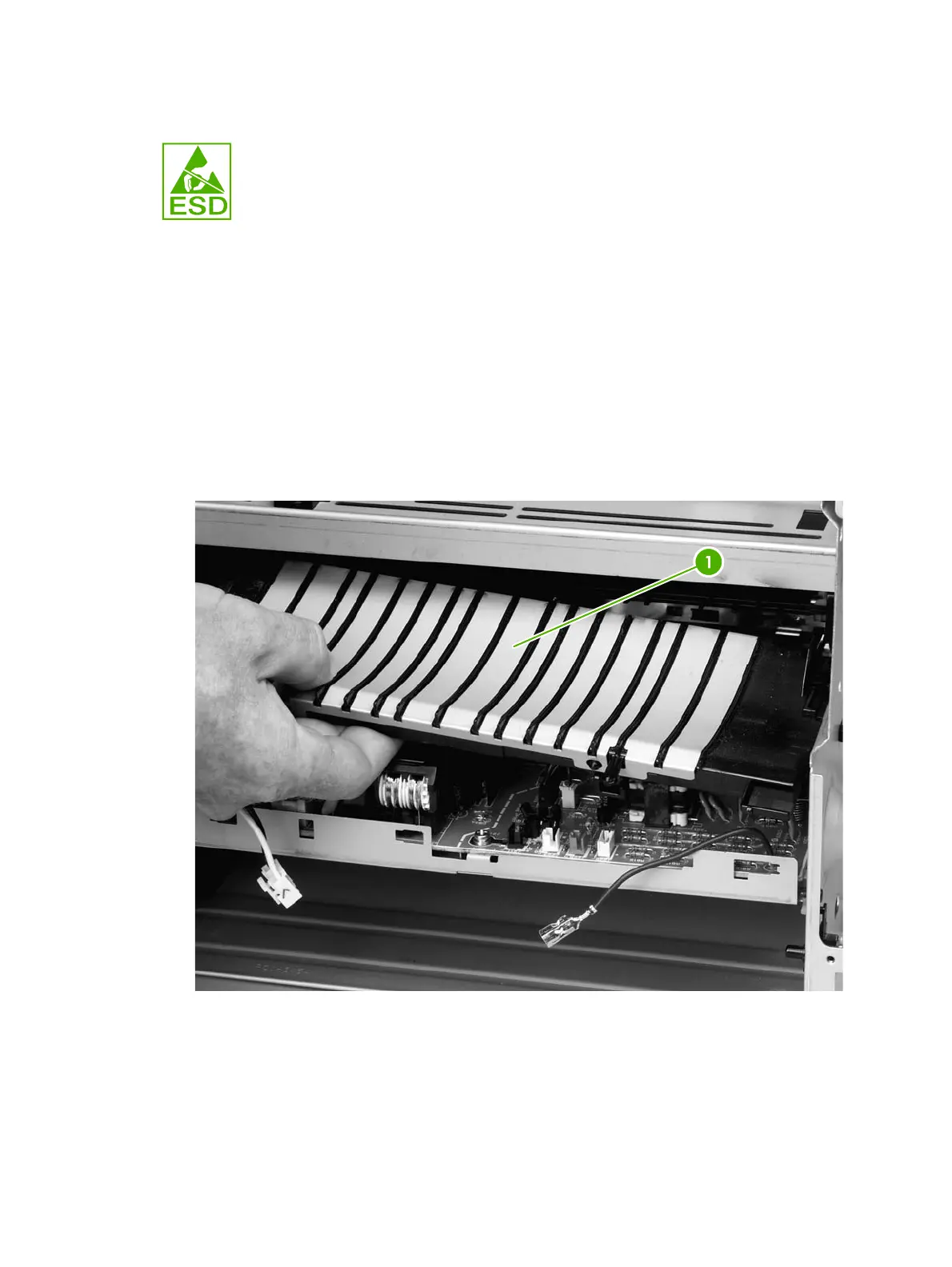

7. Remove cables from the cable clip under the feed plate (1), and then remove the feed plate by
lifting it and pulling it straight back.
Figure 6-34 Removing the ECU (1 of 7)
ENWW ECU 119
