Duplex-drive PCA (HP LaserJet P2015d, P2015dn, and
P2015x printers only)
1. Remove all covers.
2. Disconnect the duplex-drive cable (1) at the ECU, and then route the cable through the hole in
the chassis.

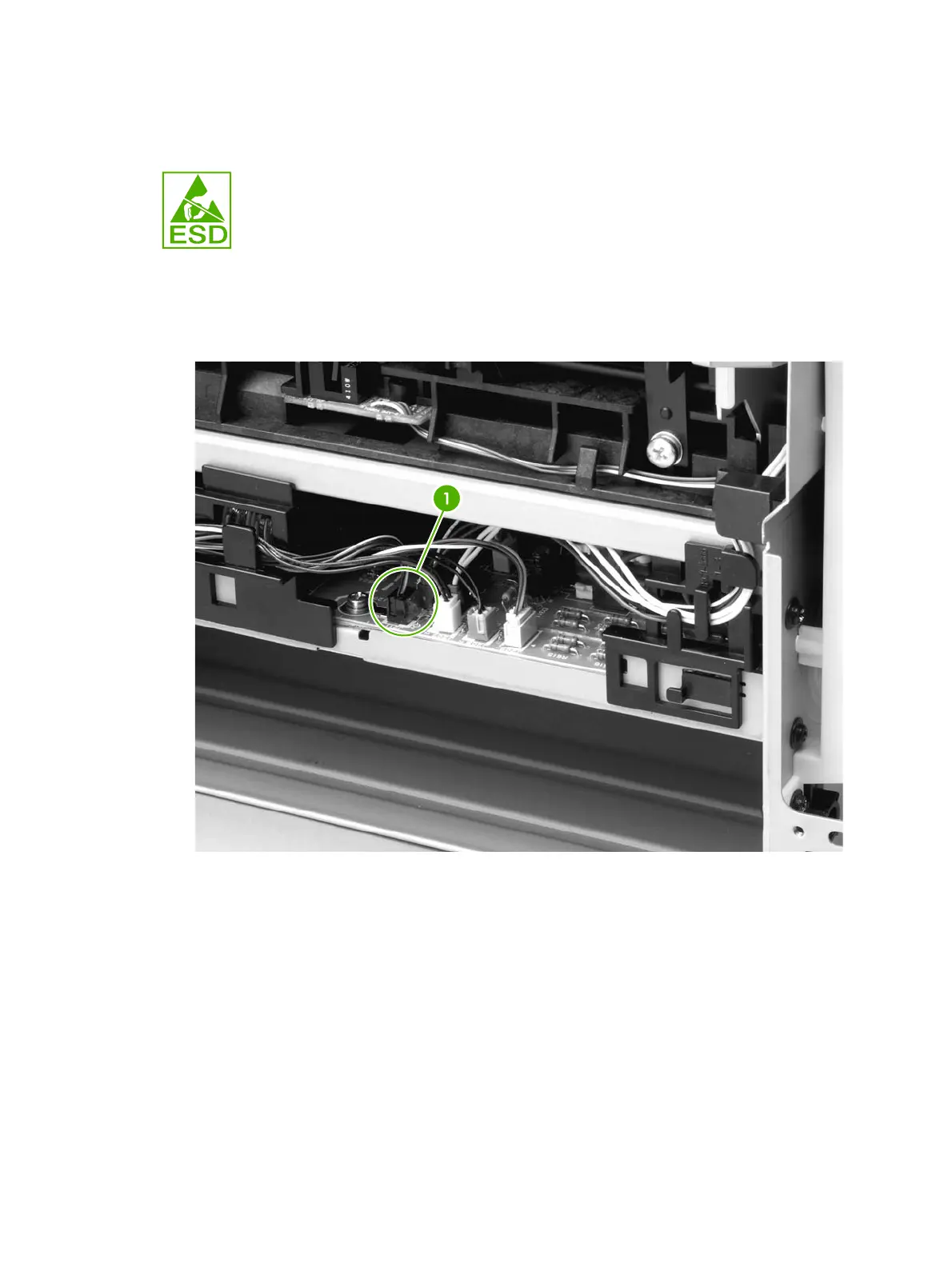

Figure 6-16 Removing the duplex-drive PCA (1 of 2)
3. Disconnect one cable (1) from the duplex-drive PCA.
ENWW Duplex-drive PCA (HP LaserJet P2015d, P2015dn, and P2015x printers only) 101
