Engine control system
The engine control system coordinates all printer functions, according to commands sent from the
formatter. It drives the laser/scanner system, the image-formation system, and the pickup/feed/
delivery system.
The engine control system contains the following components:
●
DC controller
●
High-voltage PCA

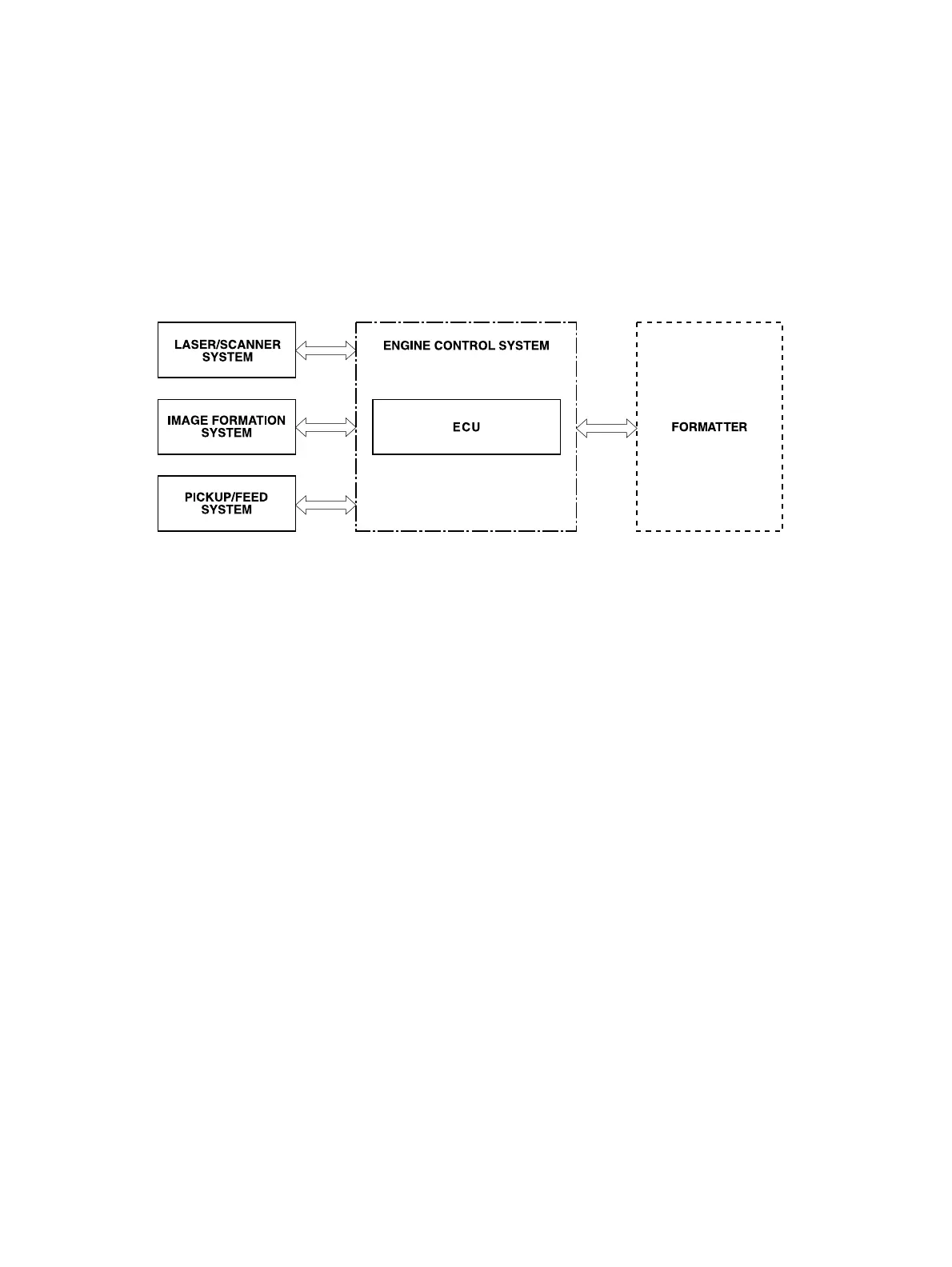

Figure 5-3 Engine control system
74 Chapter 5 Theory of operation ENWW
