HP LaserJet P2015 Series

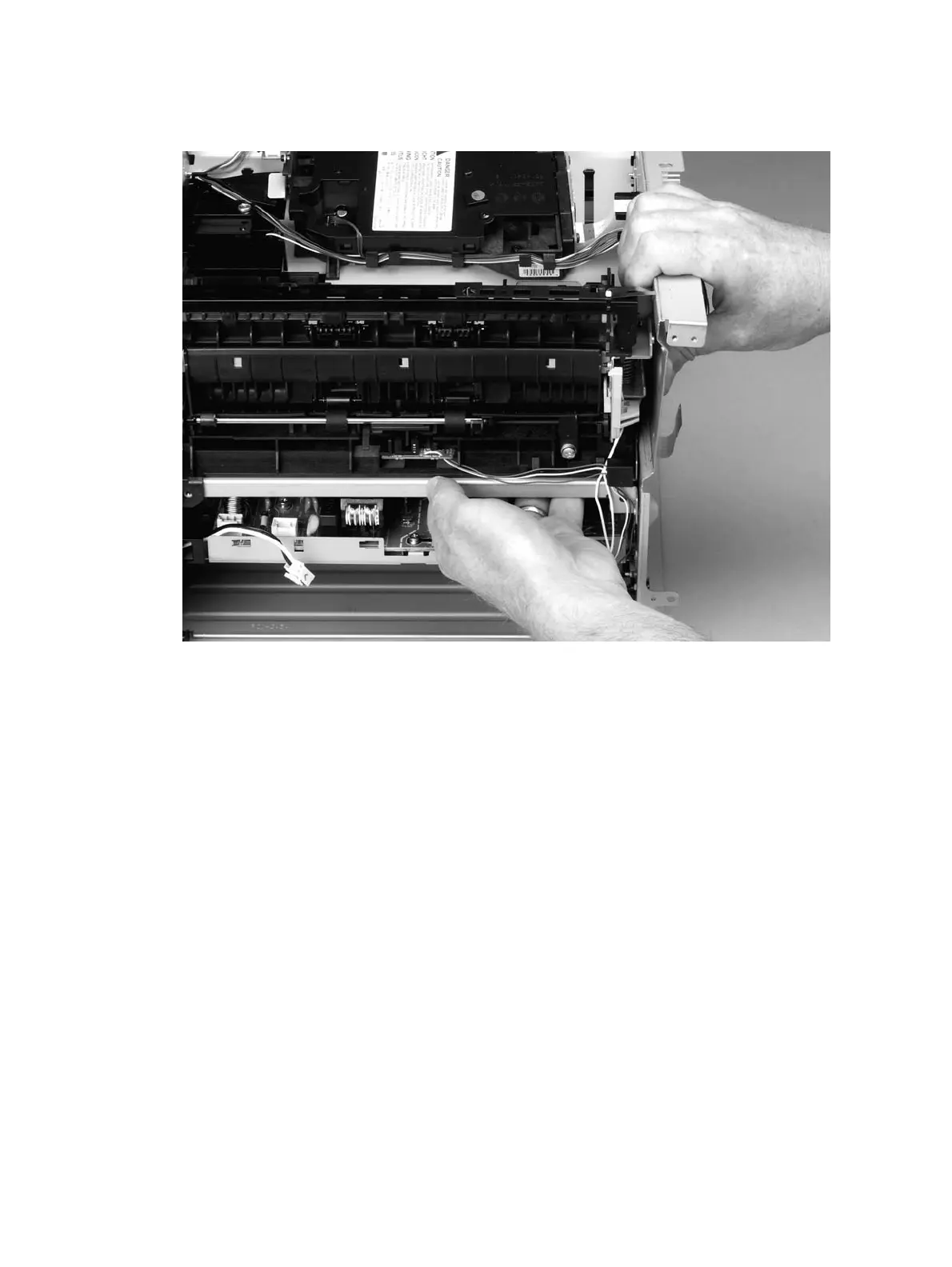

15. At the left side of the printer, pull the printer chassis from the top to spread the printer frame and
release the fuser from the frame.
Figure 6-31 Removing the fuser (9 of 10)
116 Chapter 6 Removal and replacement ENWW
