HP LaserJet P2015 Series

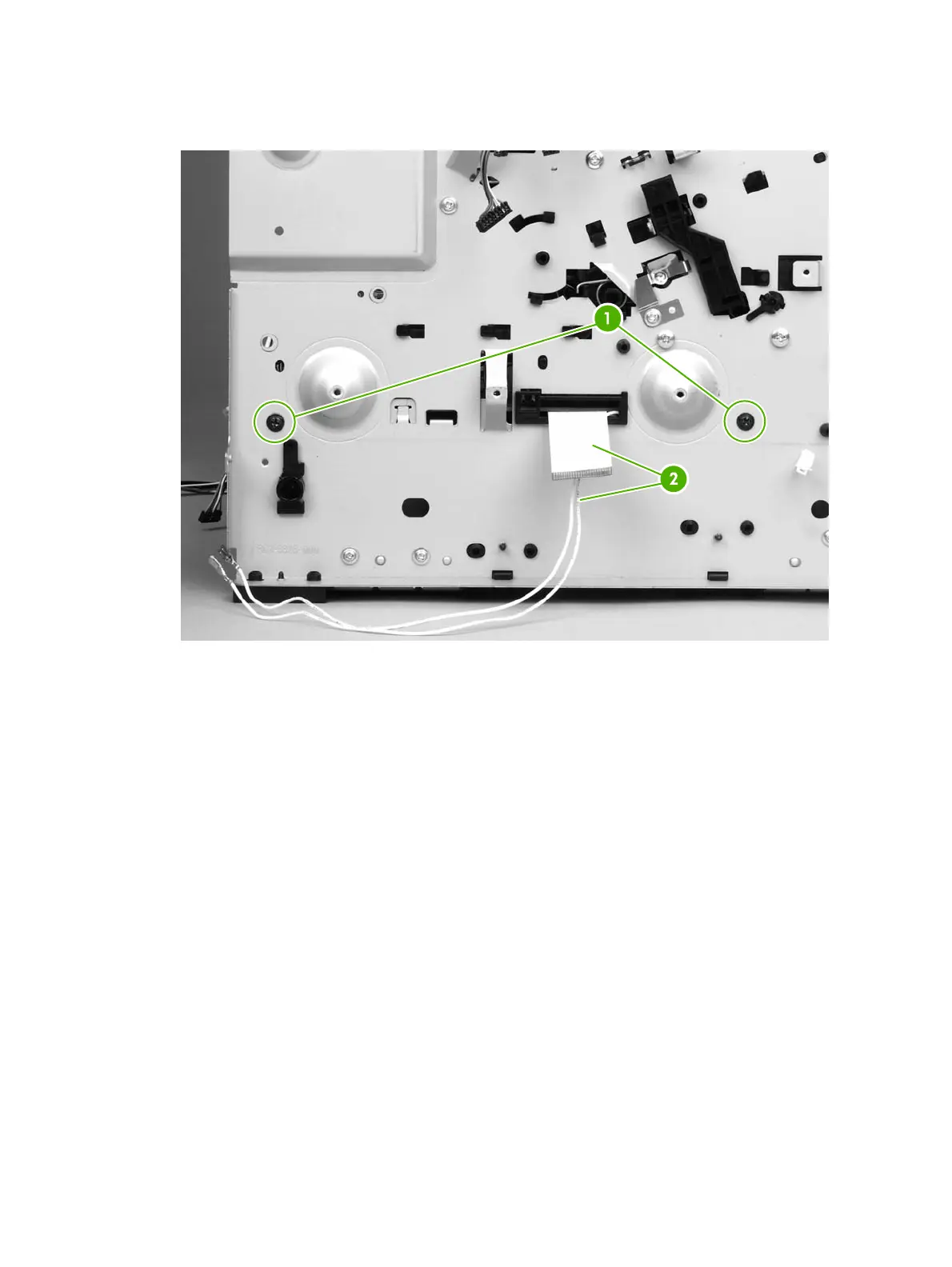

10. Remove two screws (1) from the left side of the printer, and then push the interlock cables and
the formatter cable (2) through the hole in the chassis.
Figure 6-37 Removing the ECU (4 of 7)
122 Chapter 6 Removal and replacement ENWW
