HP LaserJet P2015 Series

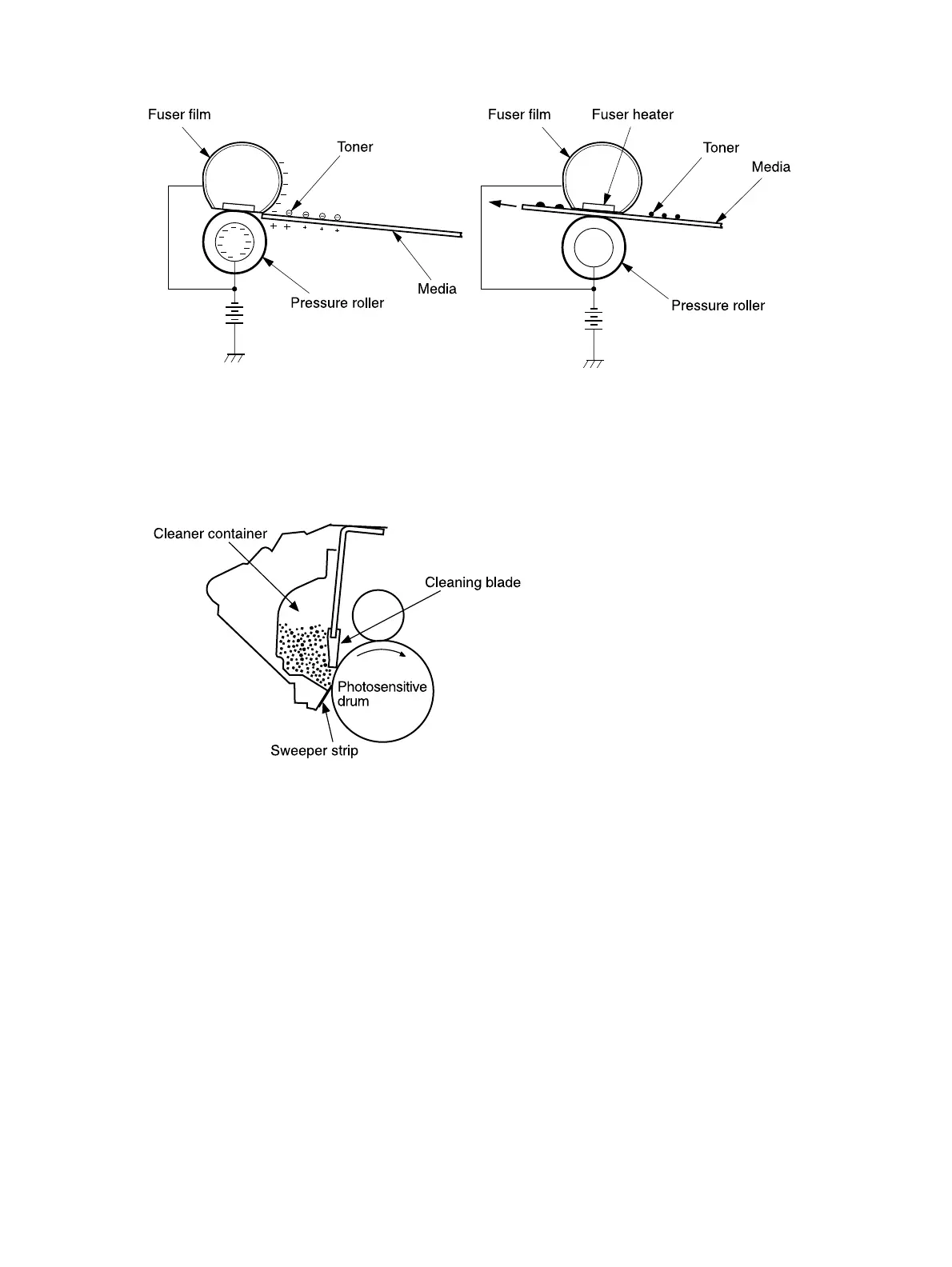

Figure 5-12 Fusing
Step 7: Drum cleaning
The cleaning blade scrapes the residual toner off the photosensitive drum and deposits it into the
waste toner case.
Figure 5-13 Drum cleaning
82 Chapter 5 Theory of operation ENWW
