3. Remove four screws (1).

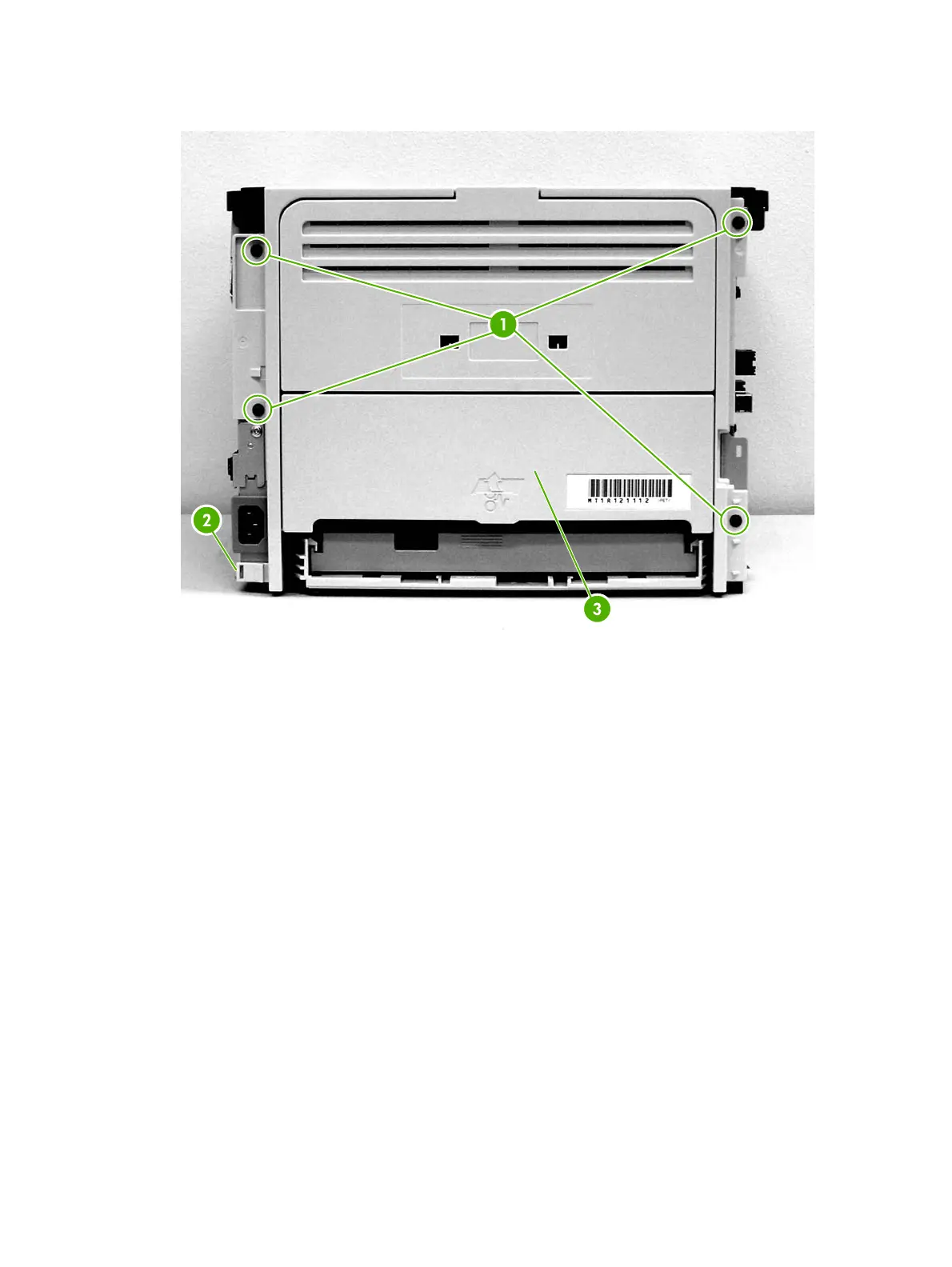

Figure 6-3 Removing the back cover (1 of 2)
4. Tip the printer so that it rests on its front.
5. Release the tab (2) at the back of the printer on the right side.
6. Open the duplex access door (3).
88 Chapter 6 Removal and replacement ENWW
