Traffic Isolation Zoning over FC routers
12

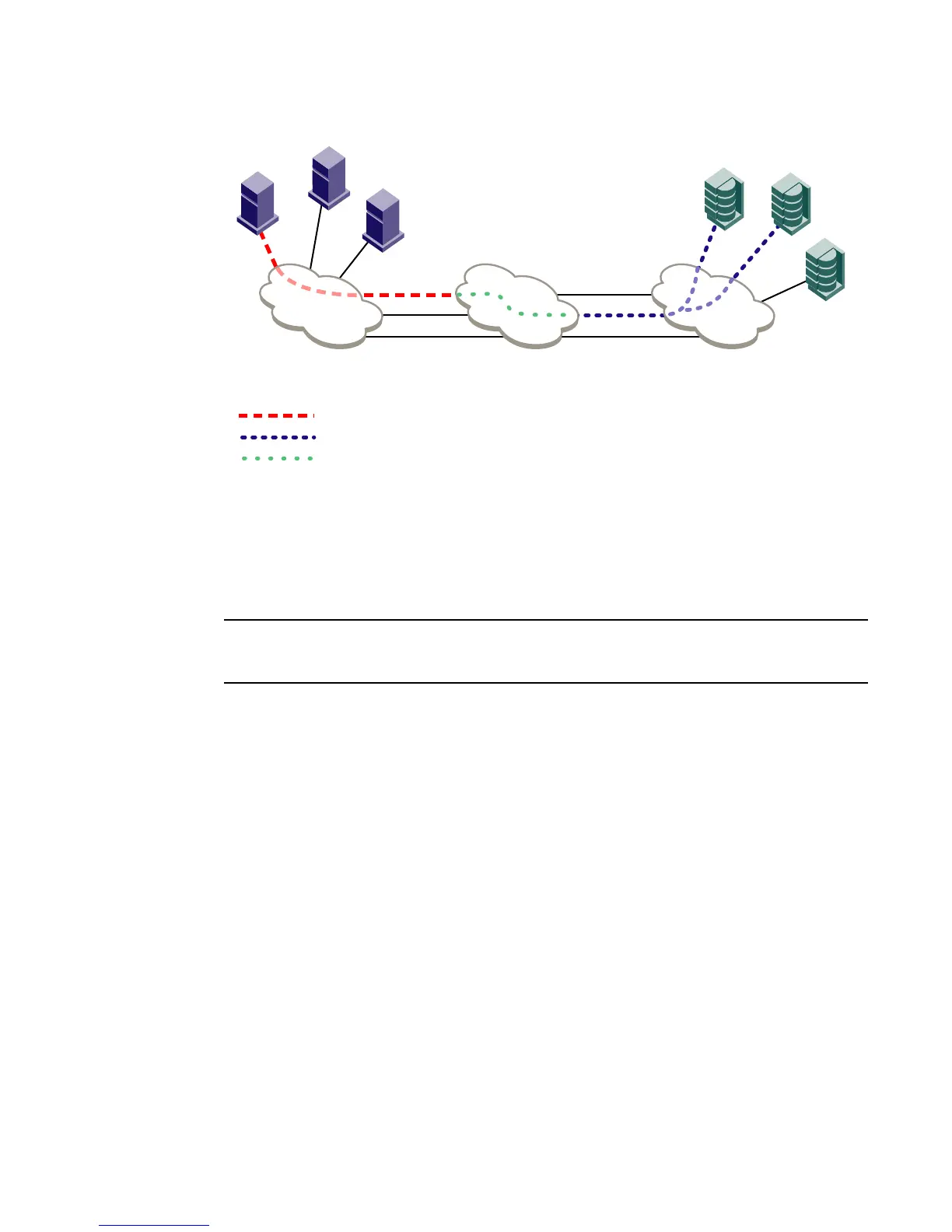

FIGURE 38 Traffic Isolation Zoning over FCR
In addition to setting up TI zones, you must also ensure that the devices are in an LSAN zone so
that they can communicate with each other.
If failover is enabled and the TI path is not available, an alternate path is used. If failover is disabled
and the TI path is not available, then devices are not imported.
For TI over FCR, all switches in the backbone fabric and in the edge fabrics must be running
Fabric OS v6.1.0 or later.
Edge fabric 1
Edge fabric 2
Backbone
fabric
= Dedicated path set up by TI zone in edge fabric 1
= Dedicated path set up by TI zone in edge fabric 2
= Dedicated path set up by TI zone in backbone fabric
