Configuring FA-PWWNs
16
This section includes an FA-PWWN configuration procedure for each of the following two topologies:
• An FA-PWWN for an HBA device that is connected to an Access Gateway switch.
• An FA-PWWN for an HBA device that is connected directly to an edge switch.
These topologies are shown in Figure 51.

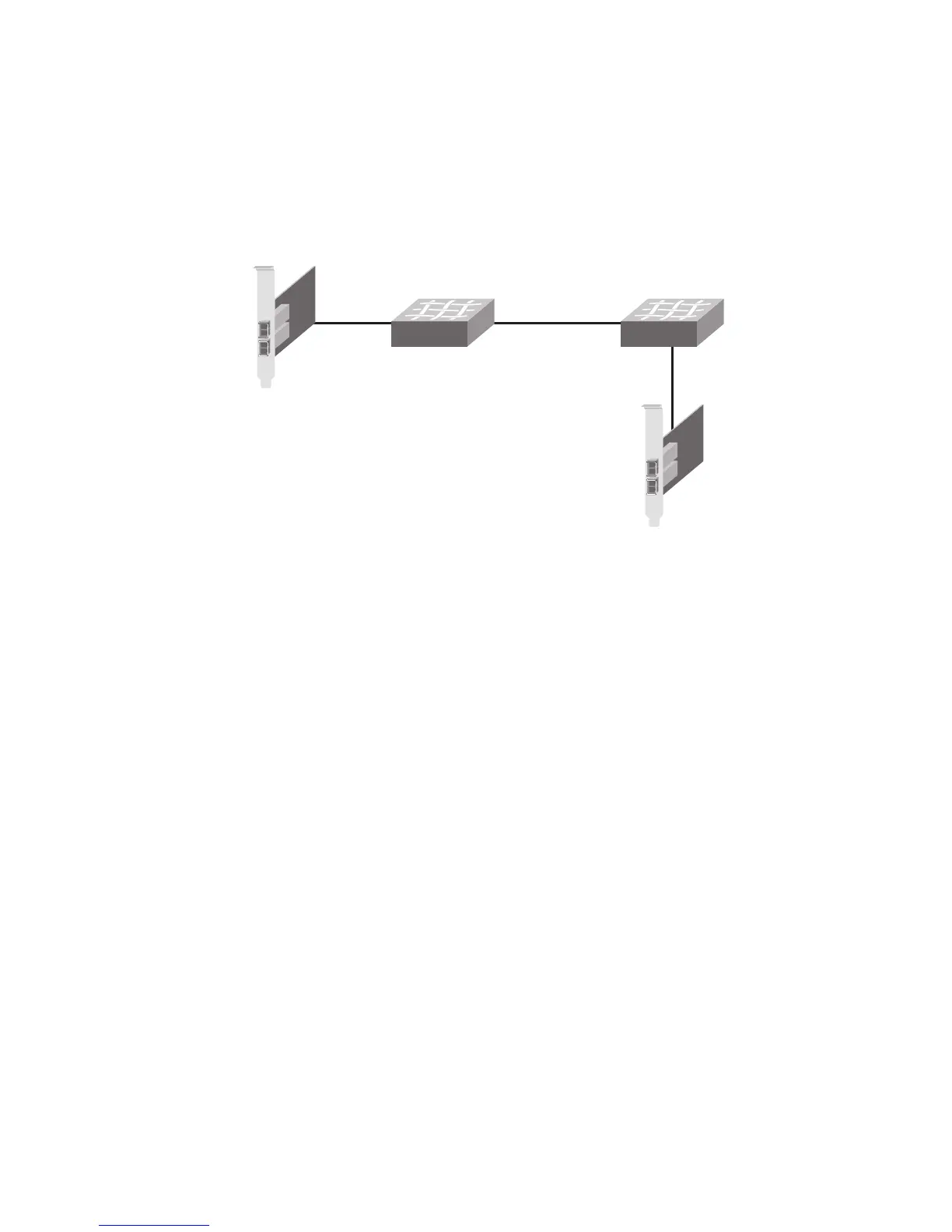

FIGURE 51 Fabric-assigned port world wide name provisioning scenarios
Configuring an FA-PWWN for an HBA connected to an Access Gateway
For this procedure, some of the steps are to be executed on the switch and some are to be
executed on the server.
1. Log in to the edge switch to which the Access Gateway is directly connected.
2. Assign the FA-PWWN.
• If you are manually assigning a WWN, enter the following command:
fapwwn --assign -ag AG_WWN -port AG_port -v Virtual_PWWN
• If you want the WWN to be automatically assigned, enter the following command:
fapwwn --assign -ag AG_WWN -port AG_port
N-Port
F-Port
F-Port
NPIV
F-Port
Scenario 2
Configure an FA-PWWN
for an HBA device connected
directly to an edge switch.
Scenario 1
An FA-PWWN is
configured for an HBA
device connected to an
Access Gateway Switch.
Access Gateway Switch
running FOS 7.0.0
Edge Switch
running FOS 7.0.0
HBA
HBA
