Part Spares Part Number Description Hot plug
PCIe riser 2 PCA (for
PCIe slots 4 to 6)
777283-001 SPS-PCA dl380 3-S 2
x16 x8 PCI-E riser2
No
Backplane for data disks 777284-001 SPS-PCA DL360/380
12-LFF SAS Backplane
No
Fan module 777286-001 SPS-Fan Module (High
PERF) DL38x Gen9
Yes
Processor heatsink 777290-001 SPS-Heatsink ASSYSTD
105WDL380
No
Fan cage 777294-001 SPS-FAN CAGE DL38x No
Cable from rear to
motherboard
814059-001 SPS-Flex Bay (2SFF
ODD USB/VGA)
No

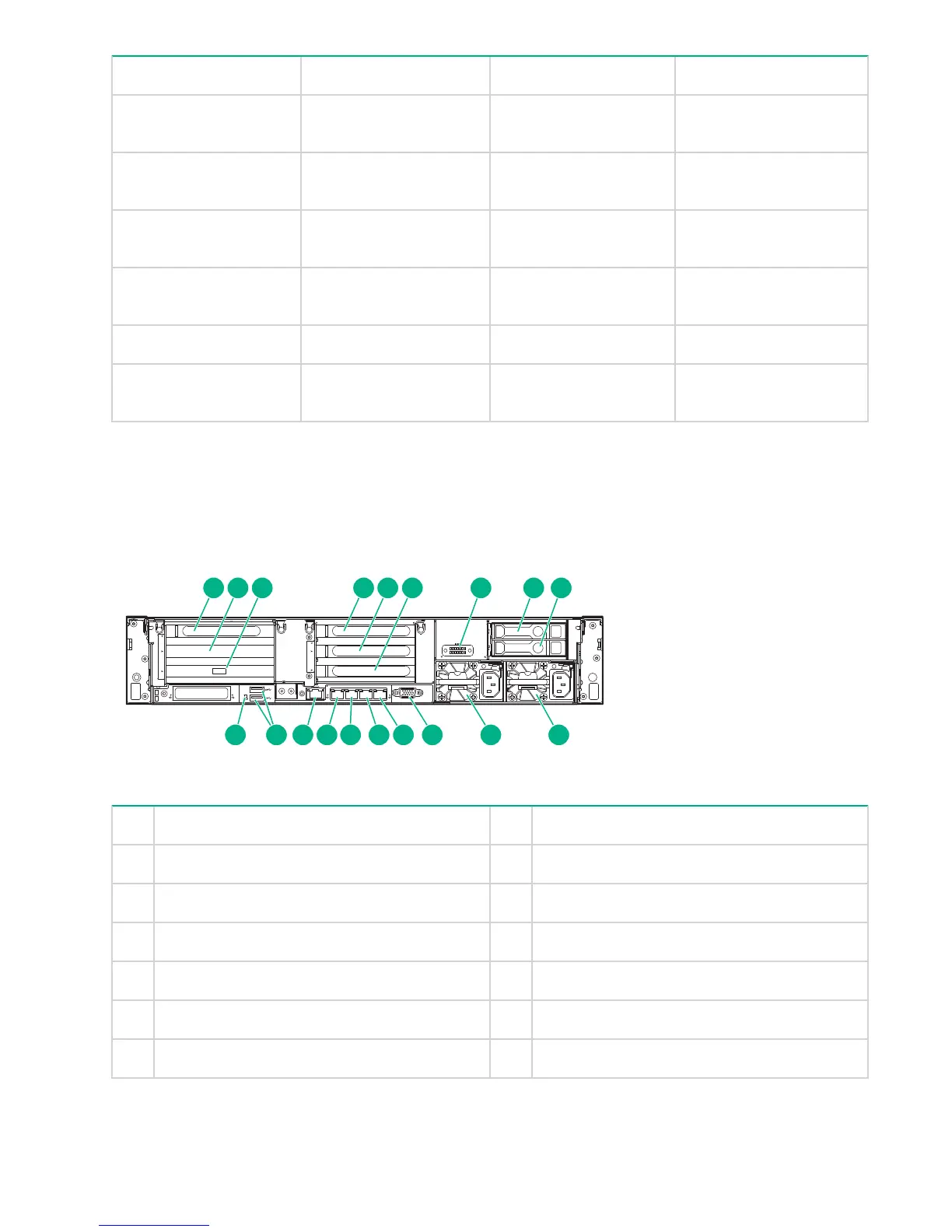

HPE StoreOnce 5100 mechanical and system components
HPE StoreOnce 3500 Series and HPE StoreOnce 5100 Systems are both based on the HPE ProLiant
DL380p server. For Mechanical and System components, see Figures 3 and 4. The following drawing shows
the rear view of the HPE StoreOnce 5100 System. It is also valid for the HPE StoreOnce 3500 Series, apart
from the two OS disks, which are only found in HPE StoreOnce 5100 Systems.
1
2
3
4
1
5
6
4
4
1
iLO
PS2
PS1
1 2 3 4 5 6 7 8 9
10111213141516171819
Figure 5: HPE StoreOnce 5100 System and HPE StoreOnce 3500 Series rear view
1 Slot 1, available for Optional Hardware 2 Slot 2, SAS expander card
3 Slot 3, RAID controller card 4 Slot 4, available for Optional Hardware
5 Slot 5, available for Optional Hardware 6 Slot 6, available for Optional Hardware
7 Optional serial port 8 OS drive 1 (not HPE StoreOnce 3500 Series)
9 OS drive 2 (not HPE StoreOnce 3500 Series) 10 Power supply 1 (PS1)
11 Power supply 2 (PS2) 12 Video connector
13 1Gb RJ45 Port 4 14 1Gb RJ45 Port 3
Table Continued
14 HPE StoreOnce 5100 mechanical and system components
To Next Page
