Item Description Status
4 Power supply 2 LED
(optional on HPE 3100)
Off = System is off or power supply
has failed.
Solid green = Normal
5 Power supply 1 LED Off = System is off or power supply
has failed.
Solid green = Normal
Storage enclosure LEDs (HPE StoreOnce 5100 System only)
Front View LEDs
3 4
1
2

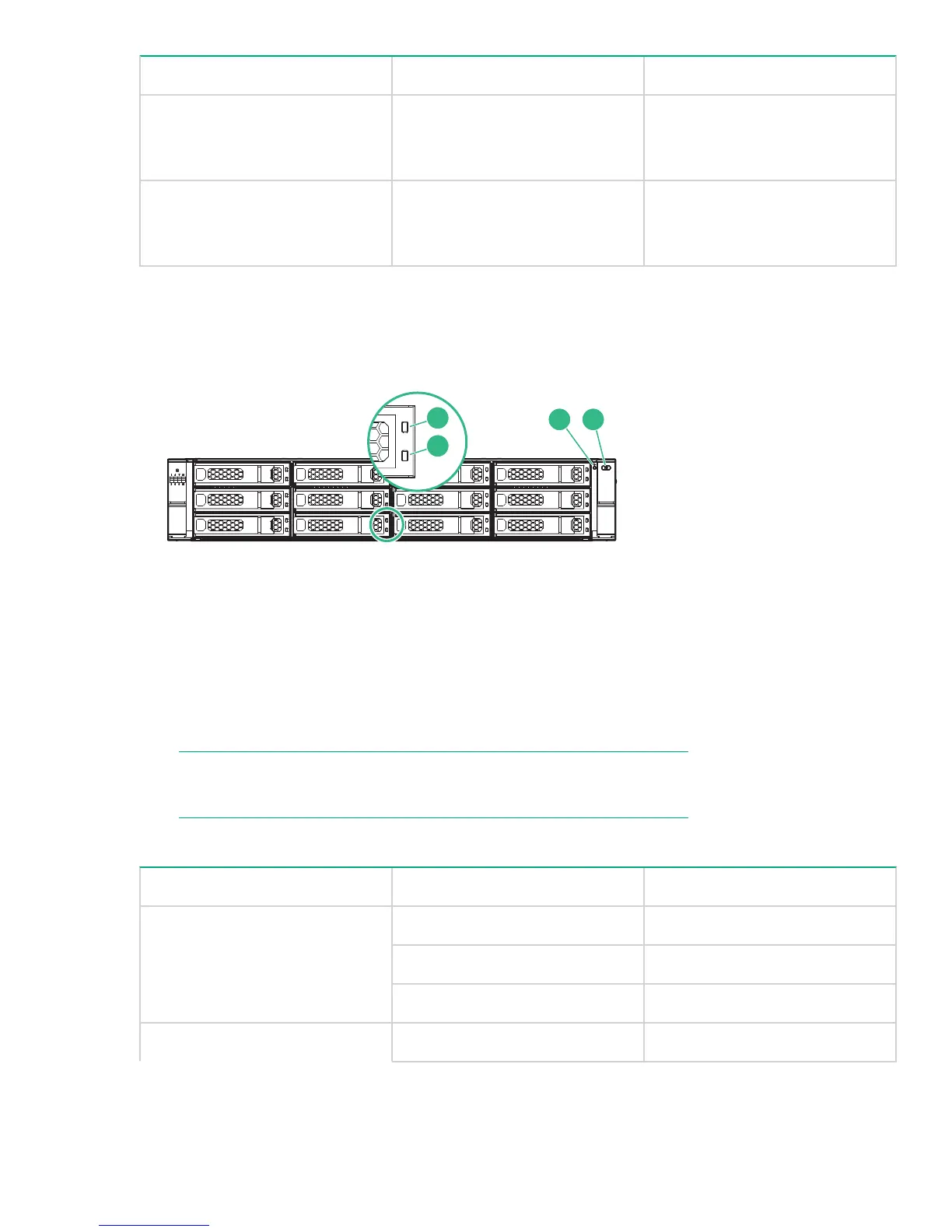

Figure 12: Capacity Upgrade front view
1. Disk drive UID 2. Disk drive status LED
3. System status LED 4. System locate UID button
Front panel system status LEDs
NOTE:
These indicators are also on the rear panel directly above power supply 2.
Table 8: Front panel system status LEDs
Indicator Display Description
System status LED Green on Normal operation
Amber on Critical fault.
Amber flashing Noncritical fault.
Locate UID Off Normal operation
Table Continued
Storage enclosure LEDs (HPE StoreOnce 5100 System only) 29
