From To SAS cable
Port on backplane Port on RAID controller card 780423–001
HPE StoreOnce 3500 Series internal SAS cabling

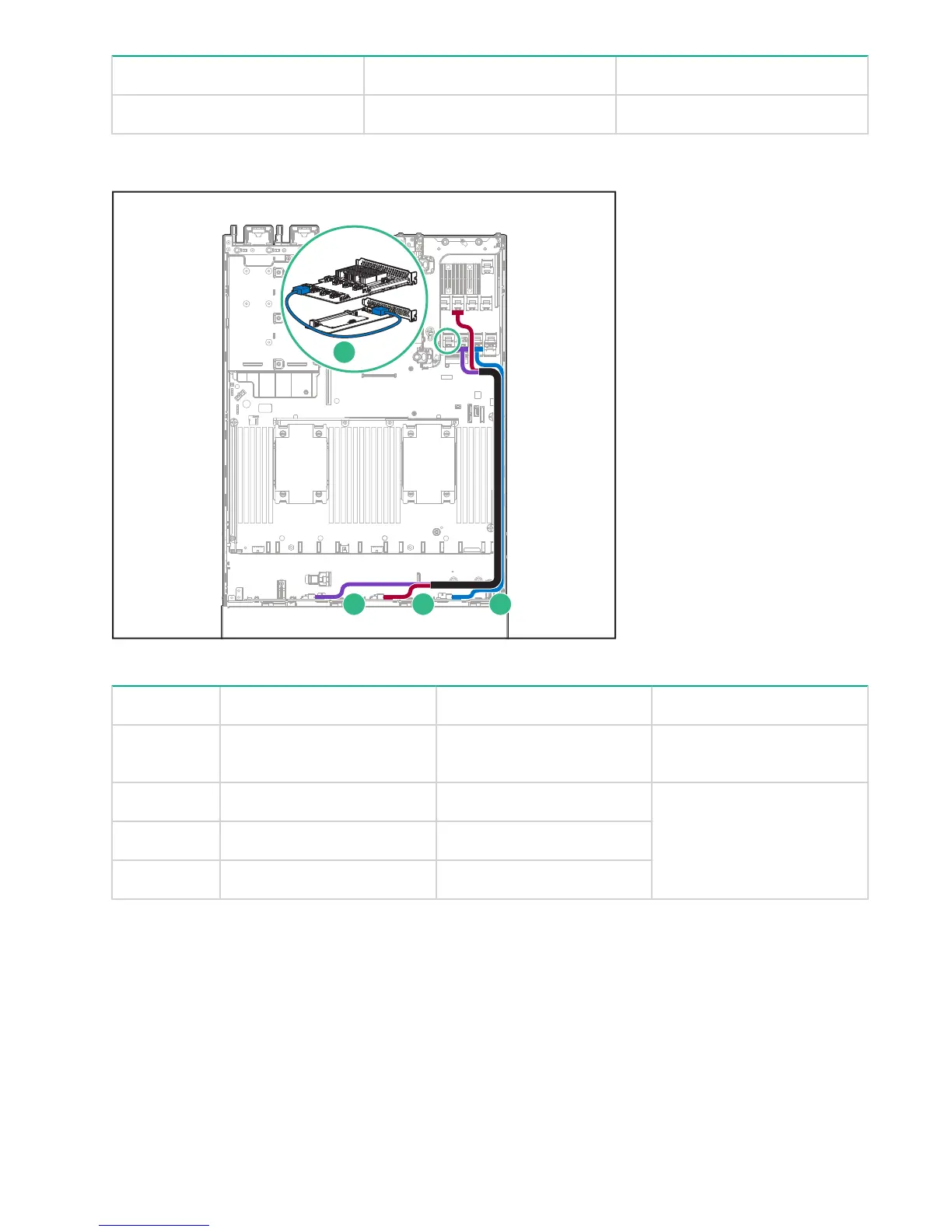

Figure 19: Internal SAS cabling for HPE StoreOnce 3500 Series
Item From To Cable
1 Port 1, RAID controller (slot
3)
Port 1, SAS expander (slot 2) 729357–001
2 Port 5, SAS expander Port 1, backplane 784627–001 (kit for all three
SAS expander to backplane
cables)
3 Port 4, SAS expander Port 2, backplane
4 Port 3, SAS expander Port 3, backplane
52 HPE StoreOnce 3500 Series internal SAS cabling
