7. Retighten the captive retainer thumbscrews
8. Replace the I/O cables.

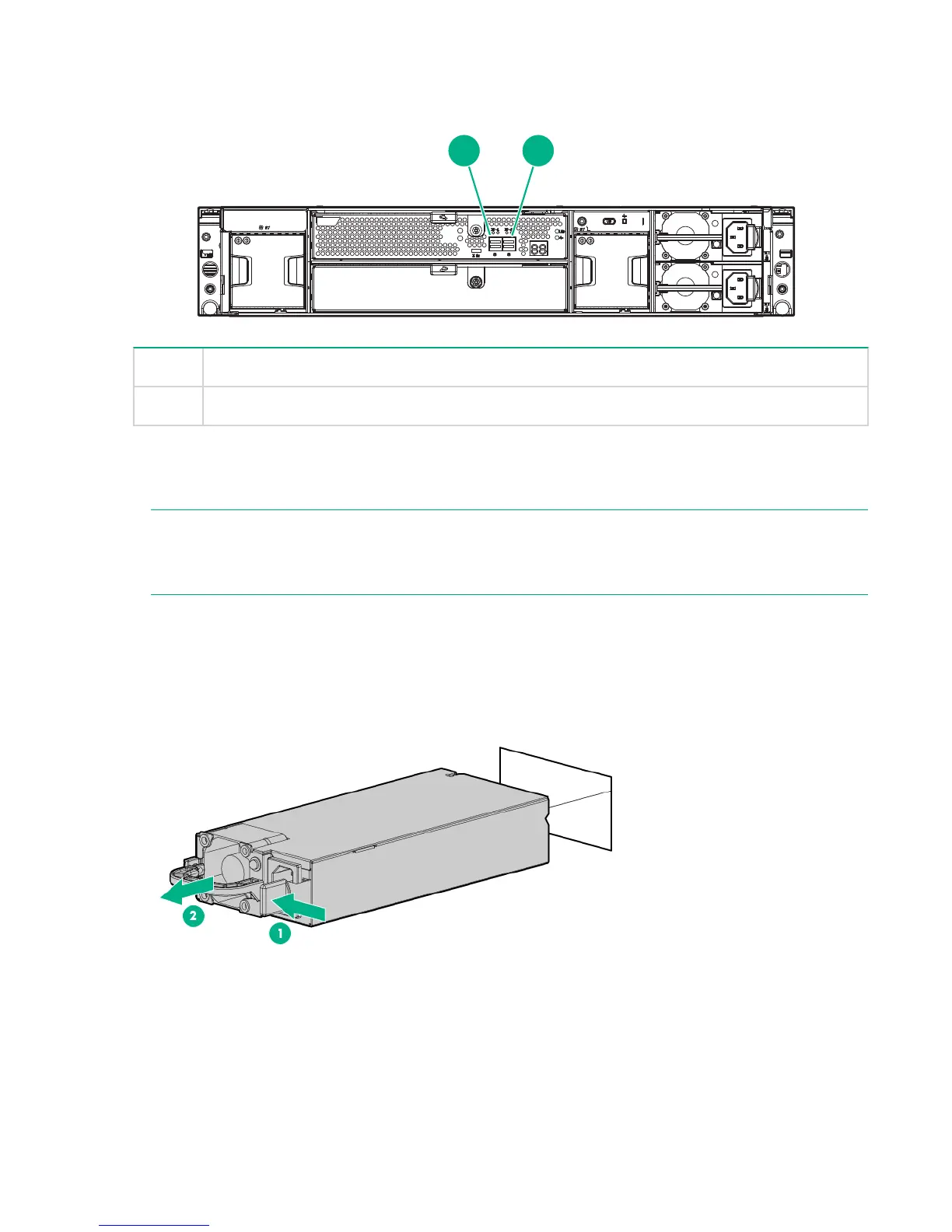

1 SAS IN from RAID controller in server or from previous enclosure
2 SAS OUT to next enclosure
9. Read the LEDs and confirm that the unit is operating.
Removing and replacing a power supply module
NOTE:
If one of the PSUs is removed and reinserted, but the power cord is not reattached, the hardware report
will show the failed AC Supply and a TempSensor Failure.
Procedure
1. Remove the power cable from the power supply to be replaced.
2. Press the latch (1) and slide the power supply module out of the enclosure (2).
3. Slide the replacement power supply into the enclosure bay until it clicks into place.
68 Removing and replacing a power supply module
