7. Remove the fan modules.
8. Remove the enclosure from the rack.

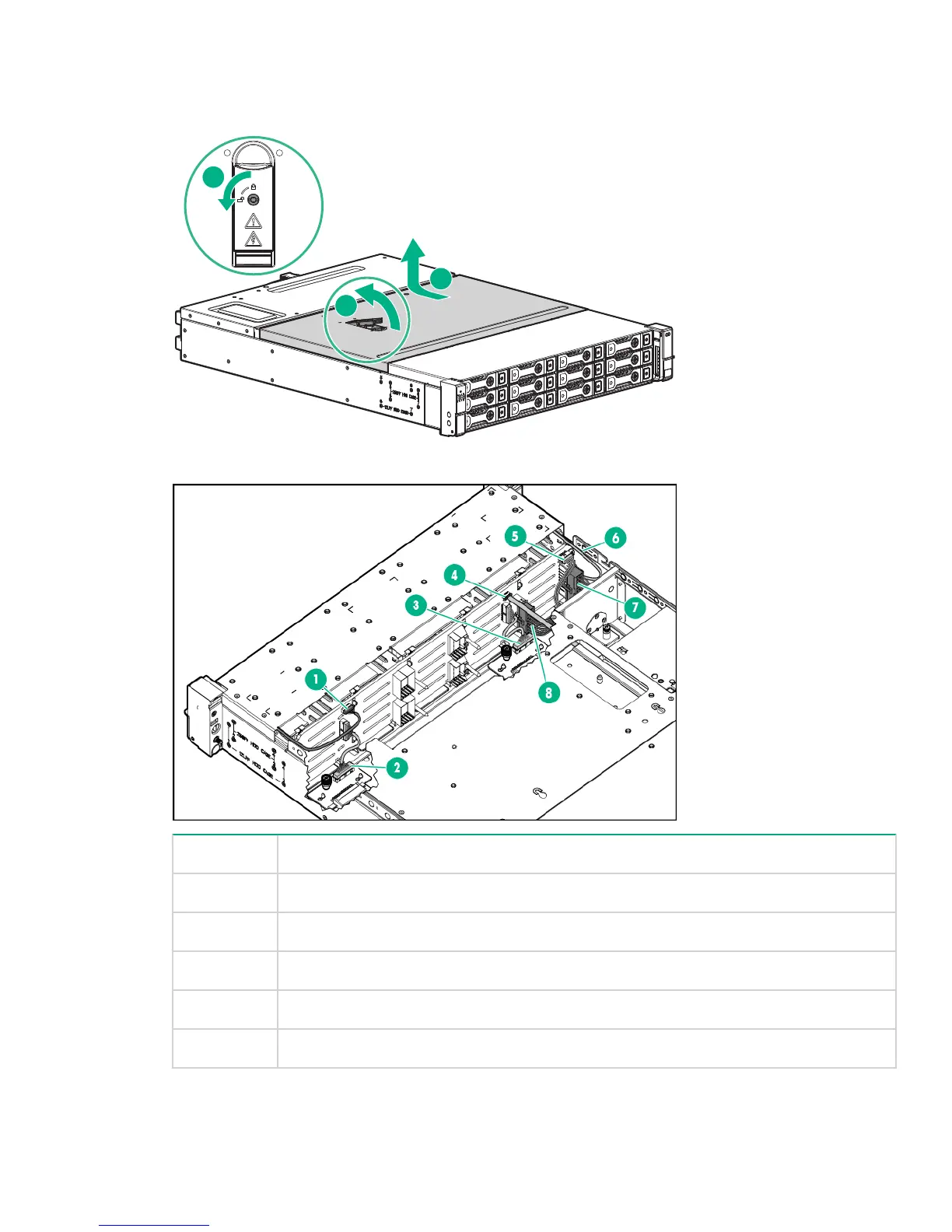

9. Pull the hood latch up and back (1 and 2), and lift the enclosure cover up and remove it (3).
10. Disconnect the following cables from the backplane:
Number Cable
1 Front UID health module
2 Fan control card
3 Fan control card
4 Rear UID health module
5 Power distribution unit
Table Continued
HPE StoreOnce 5100 System Capacity Upgrade expansion shelves 73
