Task Command
Display the delay correction history.
display ptp corrections
Display information about foreign master nodes.
display ptp foreign-masters-record
[
interface
interface-type interface-number ]
Display PTP information on an interface.
display
ptp
interface
[ interface-type
interface-number |
brief
]
Display PTP statistics.
display
ptp
[
brief
|
interface
interface-type
interface-number ] [
|
{
begin
|
exclude
|
include
}
regular-expression ]
Display PTP clock time properties.
display ptp time-property
Clear PTP statistics.
reset
ptp
statistics
[
interface
interface-type
interface-number ]
PTP configuration examples
PTP configuration example (IEEE 1588 version 2)
Network requirements
As shown in Figure 21, a PTP domain comprises Device A, Device B, and Device C.
• Configure all devices to use PTP standard IEEE 1588 version 2.
• Configure the clock node type of Device A and Device C as OC, and that of Device B as P2PTC.
All clock nodes elect a GM through BMC based on their respective default GM attributes.
• Configure the delay measurement mechanism for Device A and Device C as p2p.

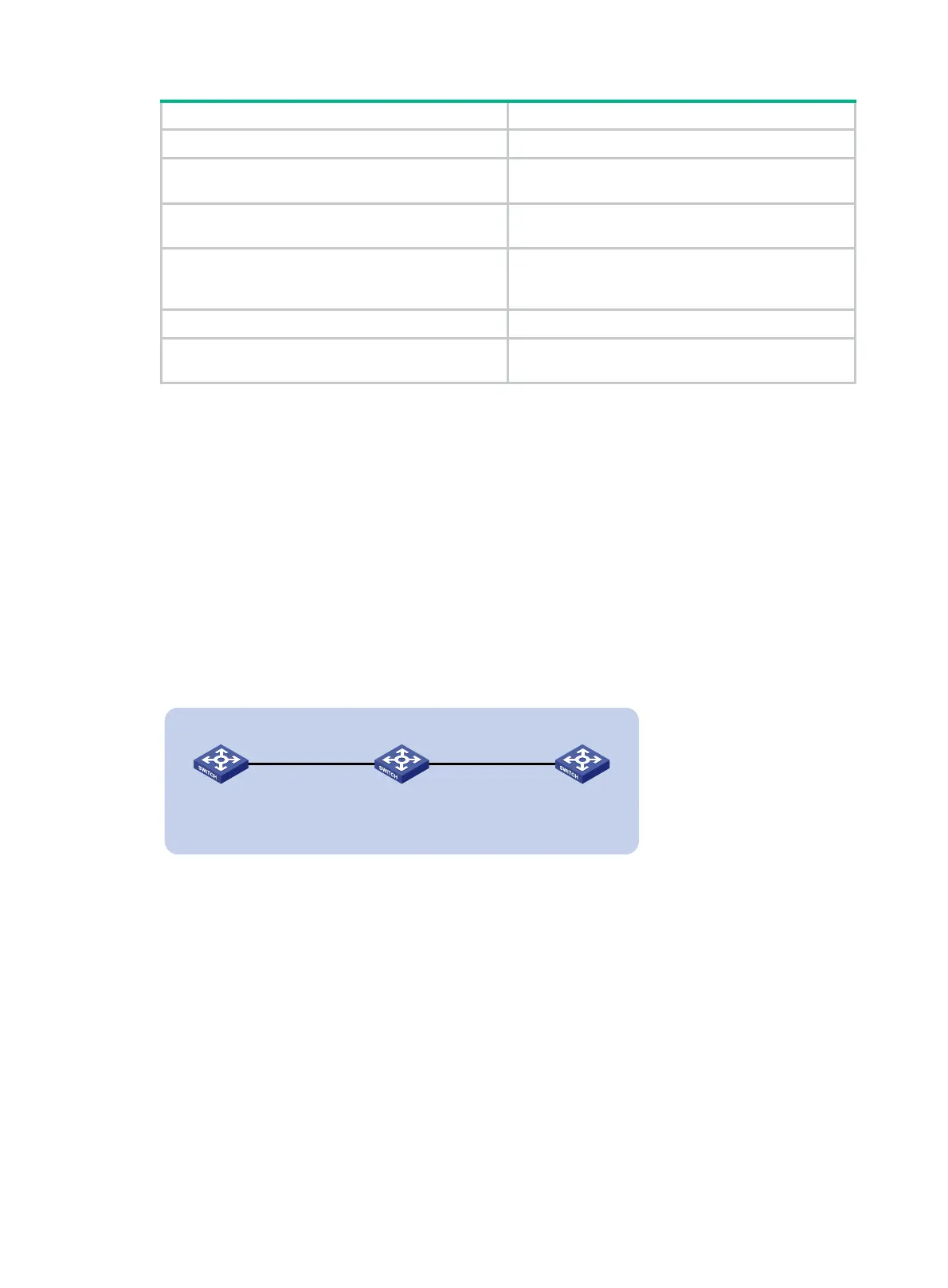

Figure 21 Network diagram
Configuration procedure
1. Configure Device A:
# Specify the PTP standard as IEEE 1588 version 2.
<DeviceA> system-view
[DeviceA] ptp profile 1588v2
# Specify the clock node type as OC.
[DeviceA] ptp mode oc
# On Ten-GigabitEthernet 1/0/1, specify the delay measurement mechanism as p2p, and
enable PTP.
[DeviceA] interface ten-gigabitethernet 1/0/1
[DeviceA-Ten-GigabitEthernet1/0/1] ptp delay-mechanism p2p
[DeviceA-Ten-GigabitEthernet1/0/1] ptp enable
XGE1/0/1
Device A Device B Device C
XGE1/0/2 XGE1/0/1XGE1/0/1
OC OCP2PTC
PTP domain
