188
• Configure flow sampling in random mode and counter sampling on Ten-GigabitEthernet 1/0/1 of
the device to monitor traffic on the port.
• Configure the device to send sampled information in sFlow packets through
Ten-GigabitEthernet 1/0/3 to the sFlow collector.

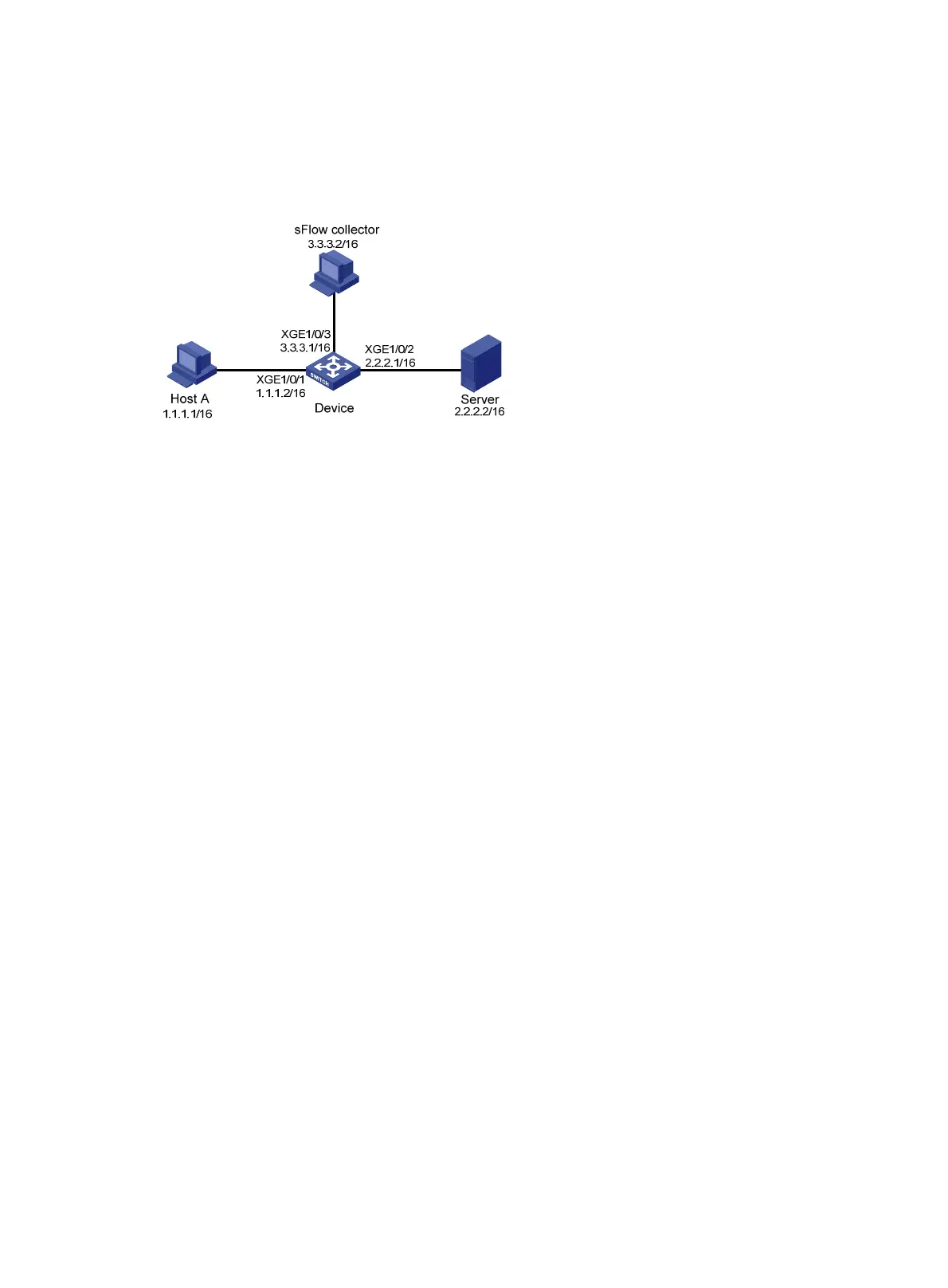

Figure 65 Network diagram
Configuration procedure
1. Configure the IP addresses and subnet masks for interfaces, as shown in Figure 65. (Details
not shown.)
2. Configure the sFlow agent and configure information about the sFlow collector:
# Configure the IP address for the sFlow agent.
<Device> system-view
[Device] sflow agent ip 3.3.3.1
# Configure information about the sFlow collector: specify the sFlow collector ID as 1, IP
address as 3.3.3.2, port number as 6343 (default), and description as netserver.
[Device] sflow collector 1 ip 3.3.3.2 description netserver
3. Configure counter sampling:
# Enable counter sampling and set the counter sampling interval to 120 seconds on
Ten-GigabitEthernet 1/0/1.
[Device] interface ten-gigabitethernet 1/0/1
[Device-Ten-GigabitEthernet1/0/1] sflow counter interval 120
# Specify sFlow collector 1 for counter sampling.
[Device-Ten-GigabitEthernet1/0/1] sflow counter collector 1
4. Configure flow sampling:
# Enable flow sampling and set the flow sampling mode to random and sampling interval to
4000.
[Device-Ten-GigabitEthernet1/0/1] sflow sampling-mode random
[Device-Ten-GigabitEthernet1/0/1] sflow sampling-rate 4000
# Specify sFlow collector 1 for flow sampling.
[Device-Ten-GigabitEthernet1/0/1] sflow flow collector 1
Verifying the configuration
# Verify that Ten-GigabitEthernet 1/0/1 enabled with sFlow is active, and sFlow is operating correctly.
[Device-Ten-GigabitEthernet1/0/1] display sflow
sFlow datagram version: 5
Global information:
