160
# Configure the NQA client to notify the feature of the operation failure if the number of consecutive
failed probes reaches 2.
[DeviceA-nqatplt-dns-dns] reaction trigger probe-fail 2
TCP template configuration example
Network requirements
As shown in Figure 54, configure a TCP template for a feature to perform the TCP operation. The
operation tests whether Device A can establish a TCP connection to Device B.

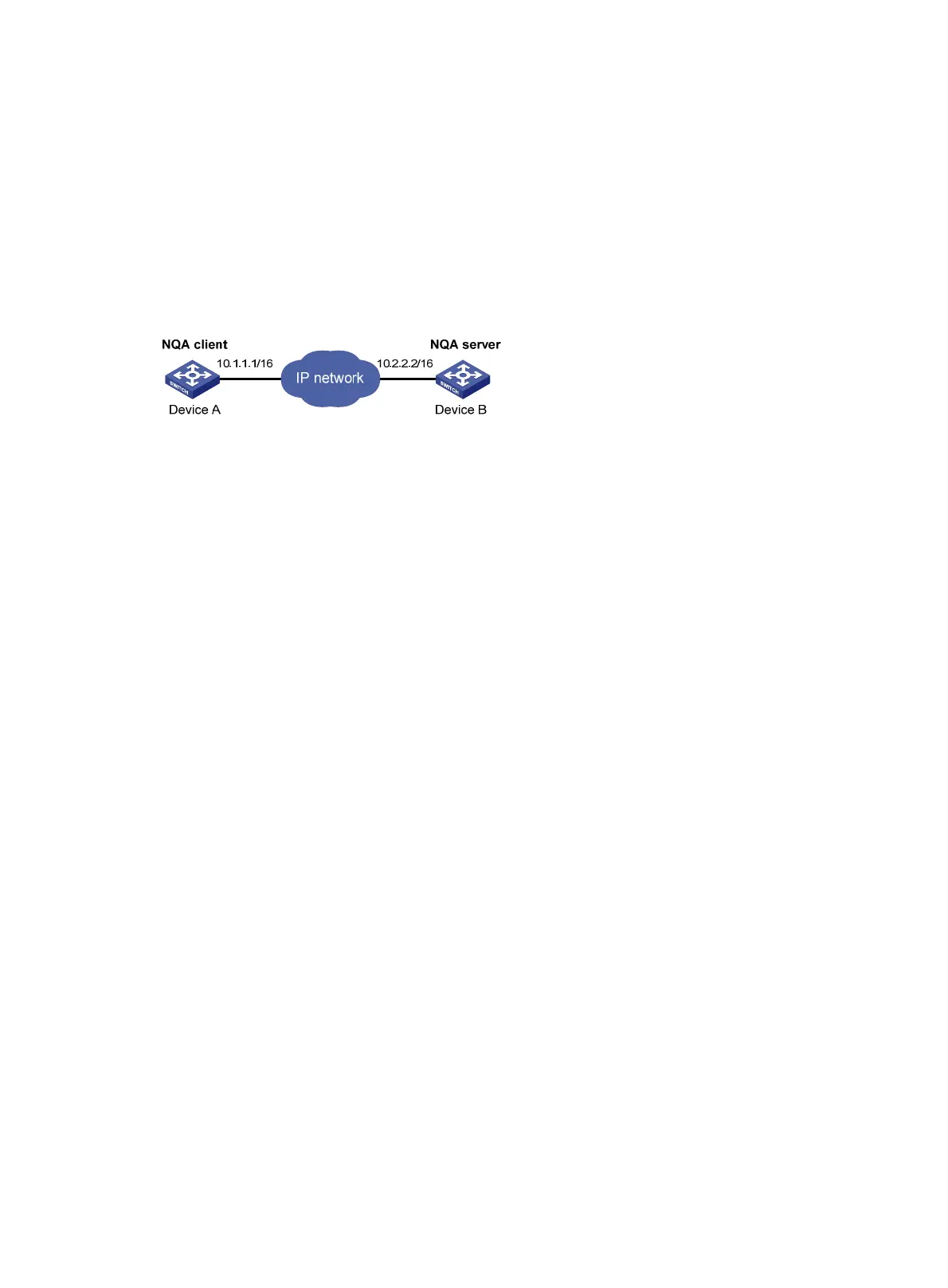

Figure 54 Network diagram
Configuration procedure
1. Assign each interface an IP address. (Details not shown.)
2. Configure static routes or a routing protocol to make sure the devices can reach each other.
(Details not shown.)
3. Configure Device B:
# Enable the NQA server.
<DeviceB> system-view
[DeviceB] nqa server enable
# Configure a listening service to listen to the IP address 10.2.2.2 and TCP port 9000.
[DeviceB] nqa server tcp-connect 10.2.2.2 9000
4. Configure Device A:
# Create TCP template tcp.
<DeviceA> system-view
[DeviceA] nqa template tcp tcp
# Configure 10.2.2.2 as the destination IP address and port 9000 as the destination port.
[DeviceA-nqatplt-tcp-tcp] destination ip 10.2.2.2
[DeviceA-nqatplt-tcp-tcp] destination port 9000
# Configure the NQA client to notify the feature of the successful operation event if the number
of consecutive successful probes reaches 2.
[DeviceA-nqatplt-tcp-tcp] reaction trigger probe-pass 2
# Configure the NQA client to notify the feature of the operation failure if the number of
consecutive failed probes reaches 2.
[DeviceA-nqatplt-tcp-tcp] reaction trigger probe-fail 2
UDP template configuration example
Network requirements
As shown in Figure 55, configure a UDP template for a feature to perform the UDP operation. The
operation tests whether Device A can receive a response from Device B.
