HPE FlexFabric 5700 Series User Manual

215

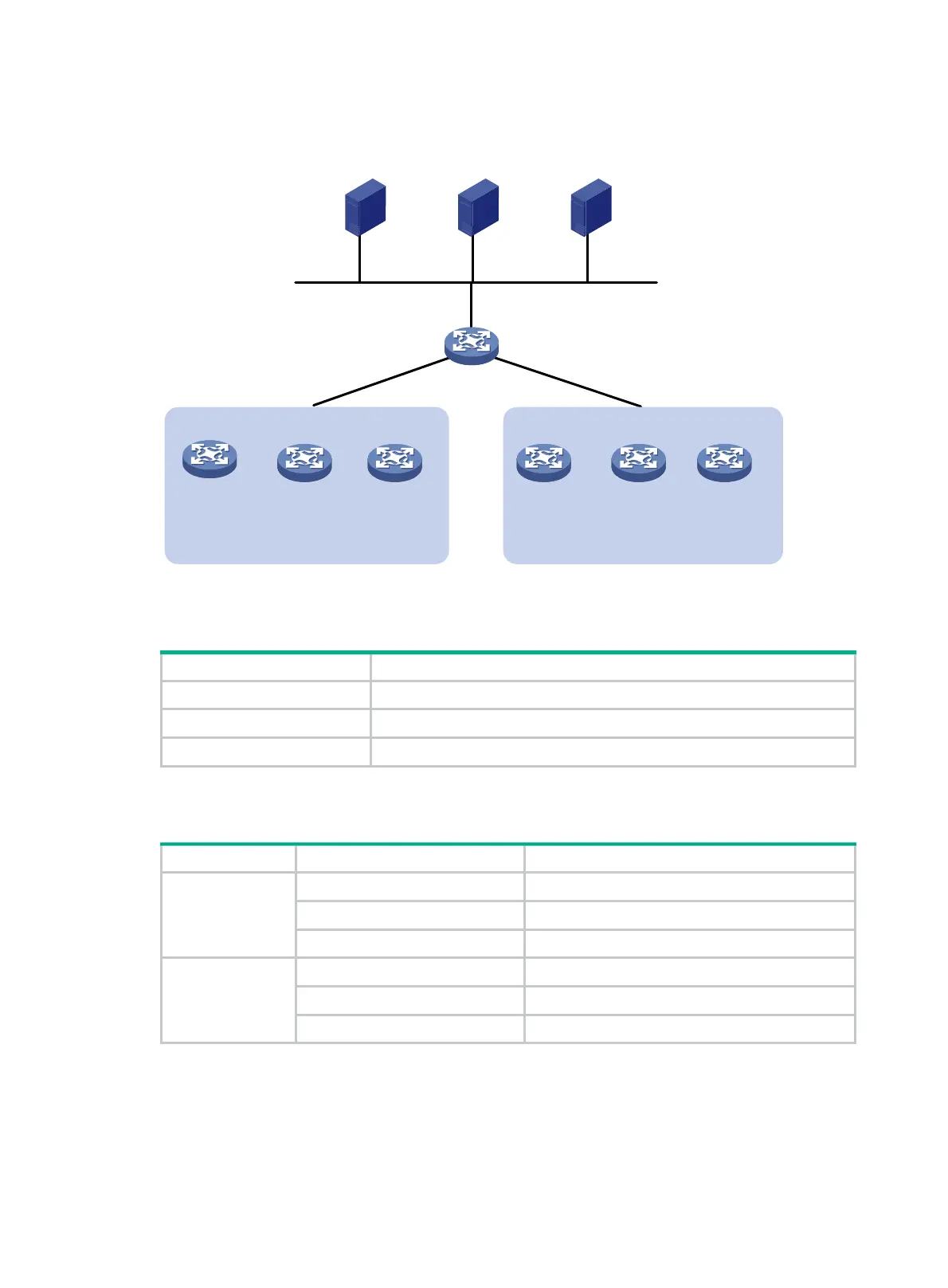

Figure 3 Network diagram
Table 25 shows the ACS attributes for the CPEs to connect to the ACS.
Table 25 ACS attributes
Item Setting
Preferred ACS URL http://10.185.10.41:8080/acs
ACS username Admin
ACS password 12345
Table 26 lists serial numbers of the CPEs.
Table 26 CPE list
Room Device Serial number
A
Device A 210231A95YH10C000045
Device B 210235AOLNH12000010
Device C 210235AOLNH12000015
B
Device D 210235AOLNH12000017
Device E 210235AOLNH12000020
Device F 210235AOLNH12000022
Configuration procedure
Configuring the ACS
1. Log in to the ACS:
Device A Device B Device C
Room A
Device D Device E Device F
Room B
ACS
10.185.10.41
DHCP Server
10.185.10.52
DNS Server
10.185.10.60

HPE FlexFabric 5700 Series Specifications

General

Product Line	HPE FlexFabric
Model	5700 Series
Power Supply	Redundant power supply options
Layer Support	Layer 2/3
Management	HPE Intelligent Management Center (IMC), CLI, SNMP
Routing Protocol	RIP, OSPF, BGP, IS-IS
Features	Virtualization
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3ae
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 90% (noncondensing)
Latency	Less than 1 µs
