HPE ProLiant DL180

Color Description
Orange P2 power cable to two NVMe drives
Blue LFF NVMe drive signal cable to the primary NVMe and FlexibleLOM riser board

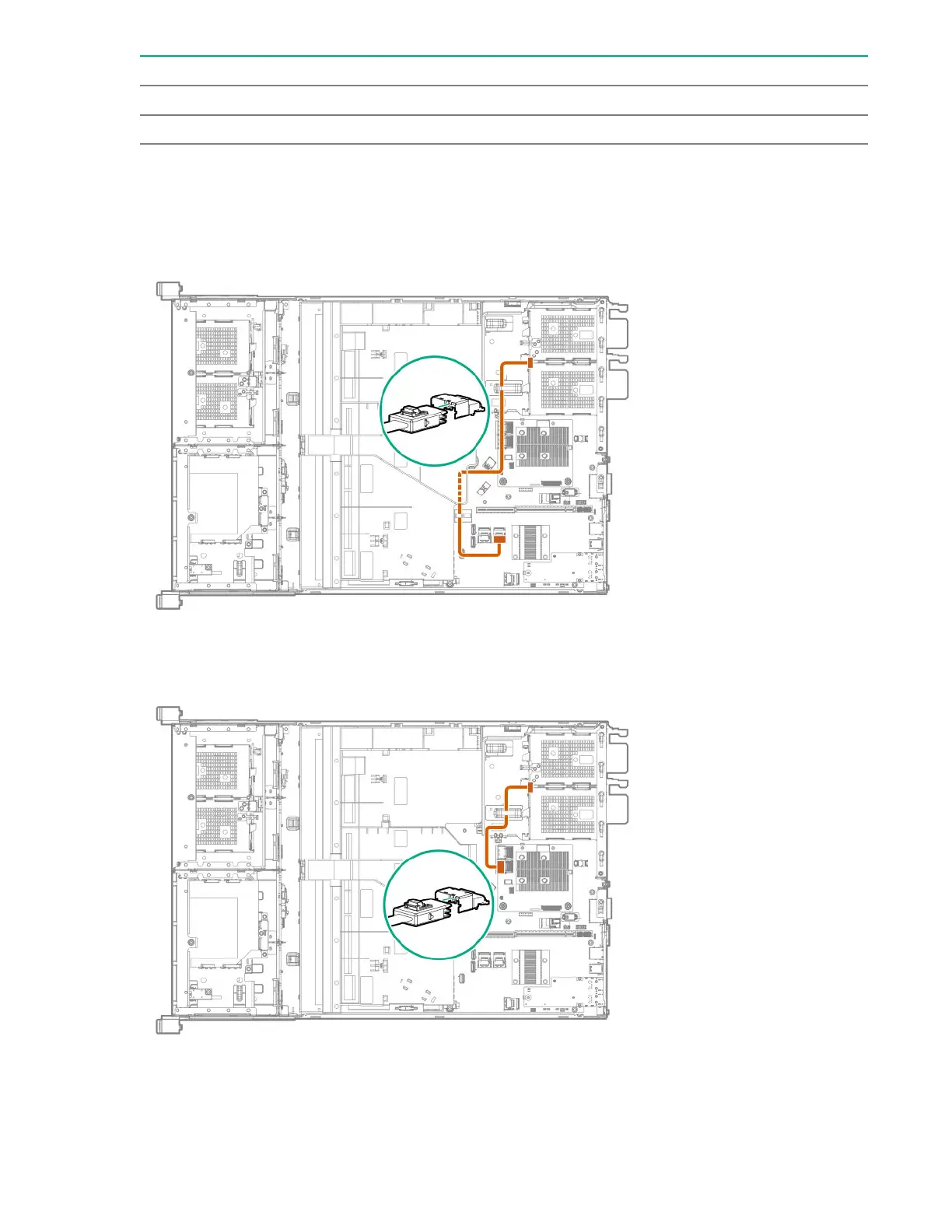

Cable routing: Rear 2-bay SFF drive
Mini-SAS cable to system board
You can connect the rear 2-bay SFF drive to all Mini-SAS ports, 1, 2, or 3.
Mini-SAS cable to type-a controller
You can connect the rear 2-bay SFF drive to any port of a Smart Array controller.
Mini-SAS cable to type-p controller
You can connect the rear 2-bay SFF drive to any port of a Smart Array controller.
134 Cabling
