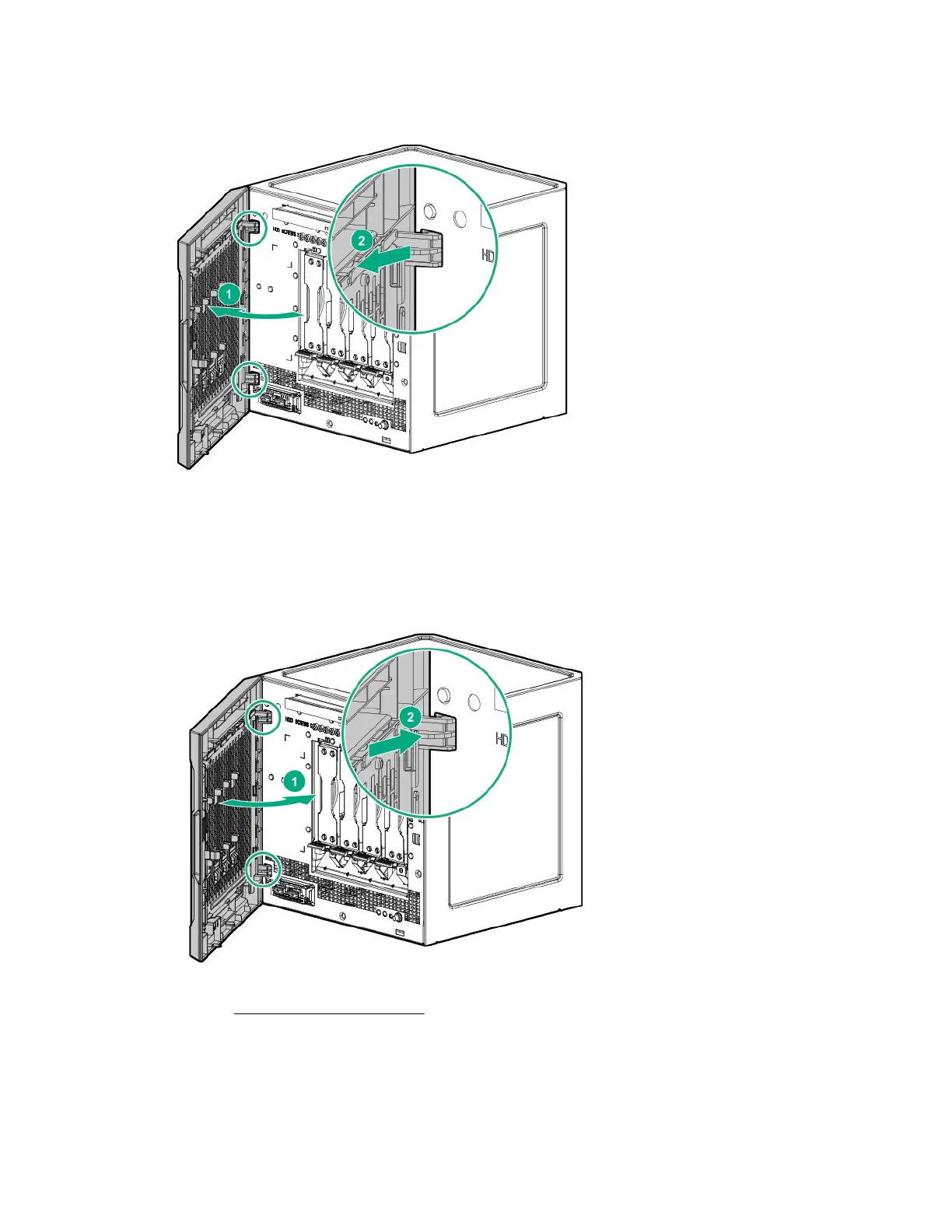

The front bezel is a removable part. Opening the bezel will loosen it from the front panel.
2. To completely detach the bezel from the front panel, pull the bezel hinges from the chassis.
Retain the bezel for later use.
Install the front bezel
To cover the drive bays, install the front bezel.
Procedure
1. Attach the bezel to the front panel, and then close it.
2. If you prefer to secure the bezel to the chassis, do the following:
a. If installed, remove the chassis cover.
b. Slide the release tab downwards to lock the bezel to the chassis.
18 Install the front bezel

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HPE ProLiant MicroServer Gen10 Series and is the answer not in the manual?

HPE ProLiant MicroServer Gen10 Series Specifications

General IconGeneral
Product LineHPE ProLiant MicroServer
ProcessorAMD Opteron X3000 Series
Memory Slots2
Networking2x 1GbE ports
MemoryUp to 32 GB DDR4 UDIMM
Storage4 LFF SATA HDD bays (3.5-inch)
RAID SupportRAID 0, 1
Power Supply200W non-redundant power supply
ManagementHPE iLO 5 Standard
Form FactorMicro Tower
Operating System SupportMicrosoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
WeightApprox. 6.5 kg
