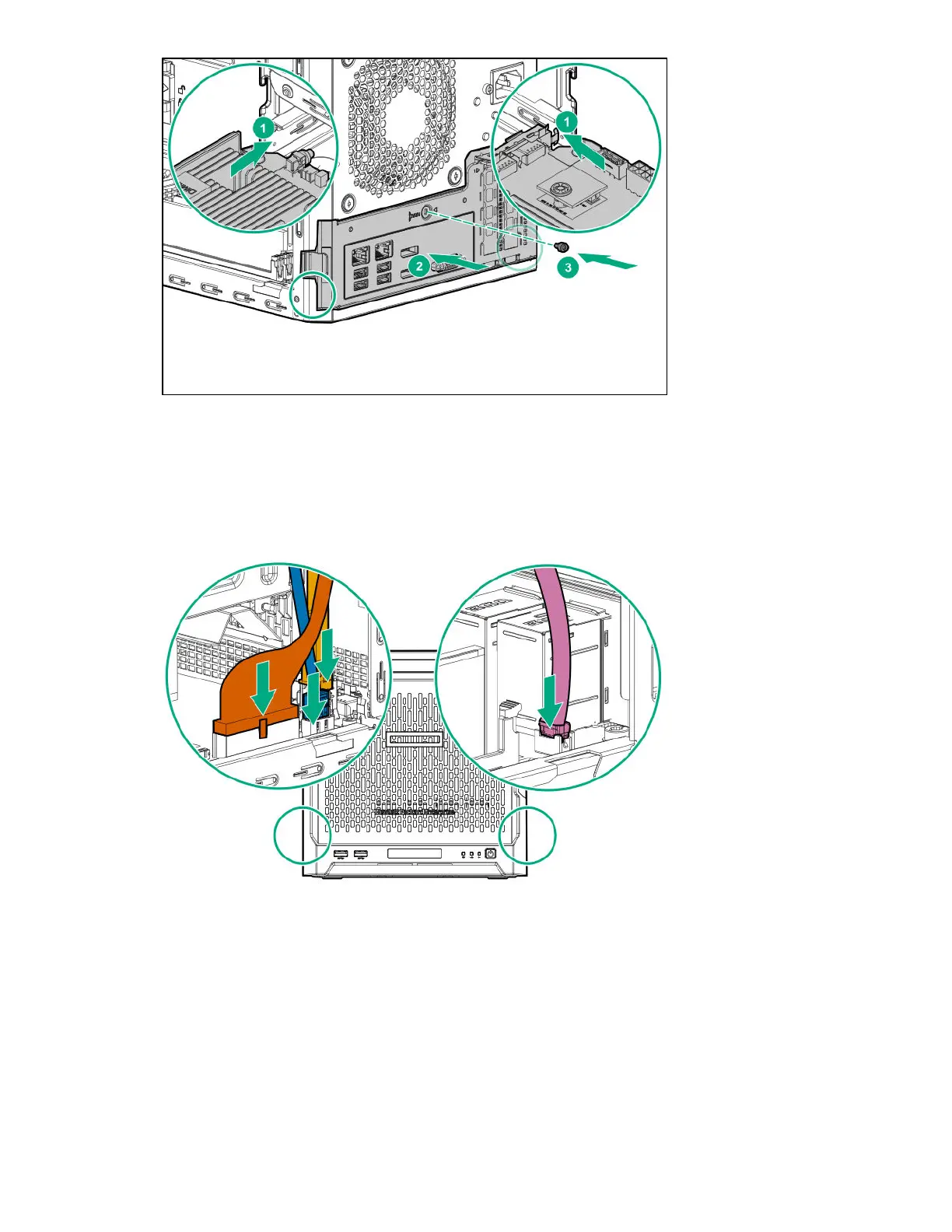

4. Connect the following system cables:
• Power supply cable
• Optical drive or SSD SATA cable (optional)
• LFF/SFF drive SATA cable – This cable can either be connected to the system board or to an installed
HBA.
• Fan cable
5. If removed, install the internal USB device.
Remove the system board assembly
To install or remove hardware components on the system board or to access the CMOS header, remove the
system board assembly.
Remove the system board assembly 21

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HPE ProLiant MicroServer Gen10 Series and is the answer not in the manual?

HPE ProLiant MicroServer Gen10 Series Specifications

General IconGeneral
Product LineHPE ProLiant MicroServer
ProcessorAMD Opteron X3000 Series
Memory Slots2
Networking2x 1GbE ports
MemoryUp to 32 GB DDR4 UDIMM
Storage4 LFF SATA HDD bays (3.5-inch)
RAID SupportRAID 0, 1
Power Supply200W non-redundant power supply
ManagementHPE iLO 5 Standard
Form FactorMicro Tower
Operating System SupportMicrosoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
WeightApprox. 6.5 kg
